Name: Higher Accuracy Cnc Turning Center TCK56 1000mm Slant Bed Machine
Brand: shandong lu young machinery co.,ltd
SKU: tck56
Price: 37,500.00 USD
Availability: InStock

Product Details

Place of Origin: Shandong, China

Brand Name: luyoung

Certification: CE

Model Number: tck56

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $35000-$40000

Packaging Details: non-fumigation wooden box

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100sets

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                    1000mm Cnc Turning Center, TCK56 Cnc Turning Center, Slant Bed Cnc Turning Center


Structure:	Slant Bed Lathe	Max. Weight Of Workpiece(kg):	200
Width Of Bed (mm):	600 Mm	Travel (X Axis)(mm):	280 Mm
Travel (Z Axis)(mm):	1000 Mm	Positioning Accuracy (mm):	±0.006
Repeatability (X/Y/Z) (mm):	±0.015	Tool Post Stations:	12
Warranty:	1 Year	Spindle Speed Ranges:	3000~4000rpm
Spindle Bore:	66mm	Spindle Taper:	A2-6

Structure:	Slant Bed Lathe
Max. Weight Of Workpiece(kg):	200
Width Of Bed (mm):	600 Mm
Travel (X Axis)(mm):	280 Mm
Travel (Z Axis)(mm):	1000 Mm
Positioning Accuracy (mm):	±0.006
Repeatability (X/Y/Z) (mm):	±0.015
Tool Post Stations:	12
Warranty:	1 Year
Spindle Speed Ranges:	3000~4000rpm
Spindle Bore:	66mm
Spindle Taper:	A2-6

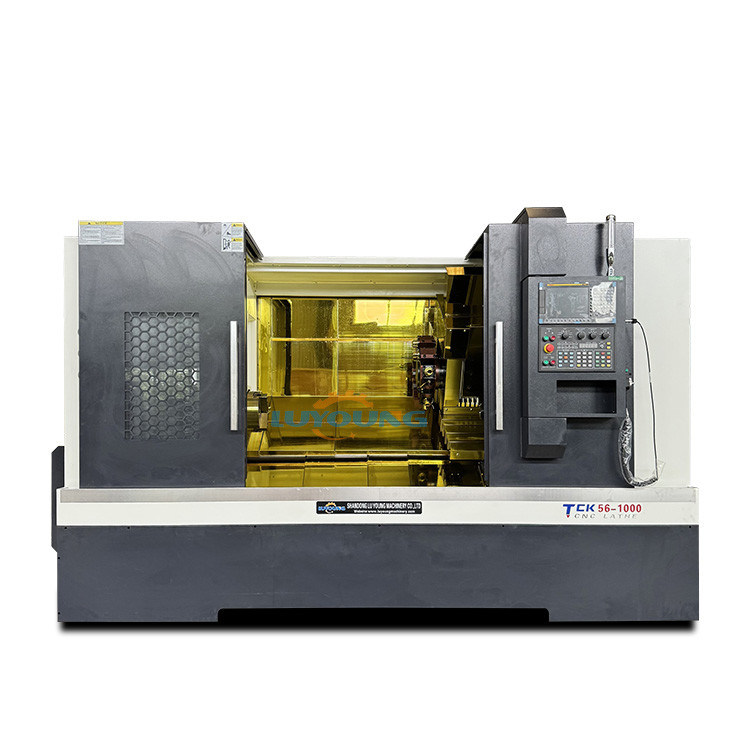

Higher Accuracy Cnc Turning Center TCK56 1000mm Slant Bed Machine

Higher Accuracy CNC Turning Center TCK56 1000mm Slant Bed Machine

Key Specifications

Attribute	Value
Structure	Slant Bed Lathe
Max. Weight of Workpiece	200 kg
Width of bed	600 mm
Travel (X Axis)	280 mm
Travel (Z Axis)	1000 mm
Positioning Accuracy	±0.006 mm
Repeatability (X/Y/Z)	±0.015 mm
Tool Post Stations	12
Warranty	1 Year
Spindle Speed Ranges	3000~4000 rpm
Spindle bore	66 mm
Spindle taper	A2-6

Technical Specifications

Specification	Unit	Value
Max.swing over bed	mm	560
Max. Processing length	mm	750
Cross slide length	mm	1000
Lathe bed structure		45° integral inclined lathe
Spindle nose		A2-6
Spindle (C axis) speed range	R/min	50-3500
Bar capacity	mm	75
Spindle (C Axis) motor	kw	11
Milling head		12 station driven turret
Milling head power	kw	2.3
Milling head speed	R/min	6000
X axis travel	mm	340
Z axis travel	mm	1000
Y axis travel	mm	100
Turret type		12 station driven turret
X rapid traverse	Mm/min	24000
Z rapid traverse	Mm/min	24000
Y rapid traverse	Mm/min	15000
X/Z axis positioning accuracy	mm	0.006
X/Z axis repositioning accuracy	mm	0.015
Spindle (C axis) dividing positioning accuracy	mm	0.02''(70 arc-second)
Spindle (C axis) dividing repositioning accuracy	mm	0.006''(20 arc-second)
Machine dimension (LxWxH)	mm	3400x2060x2100
Net weight	Kg	4200/4500

Optional Turret Configurations

Hydraulic servo turret, VDI turret

Advanced Features

Taiwanese linear guideways on the TCK56 slant bed lathe improve machining accuracy.

Live Tool Turret (Core Component)

Mounted on the spindle (typically with interfaces like BMT, VDI, etc.), capable of holding multiple tools
Key Feature: The turret can perform both turning operations (radial) and features built-in drive power (driven by a servo motor) for rotating tools (milling cutters, drills, taps, etc.)
Y-axis (Critical Feature): The live tool turret incorporates Y-axis functionality, allowing rotating tools to move in X (radial), Z (axial), and Y (vertical) directions
Enables off-center milling, drilling, tapping, and complex 2.5D or 3D contour milling

C-axis (Indexing/Contouring Control)

The main spindle is a high-precision numerically controlled rotary axis (C-axis)
Indexing Positioning: Precisely rotates the spindle to specific angles for milling or drilling operations
Contouring Control: Interpolates with X, Y, and Z axes for true 3-axis, 4-axis (X/Y/Z/C), or 5-axis simultaneous machining
Enables machining of complex surfaces, cams, spiral grooves, and similar features
