Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

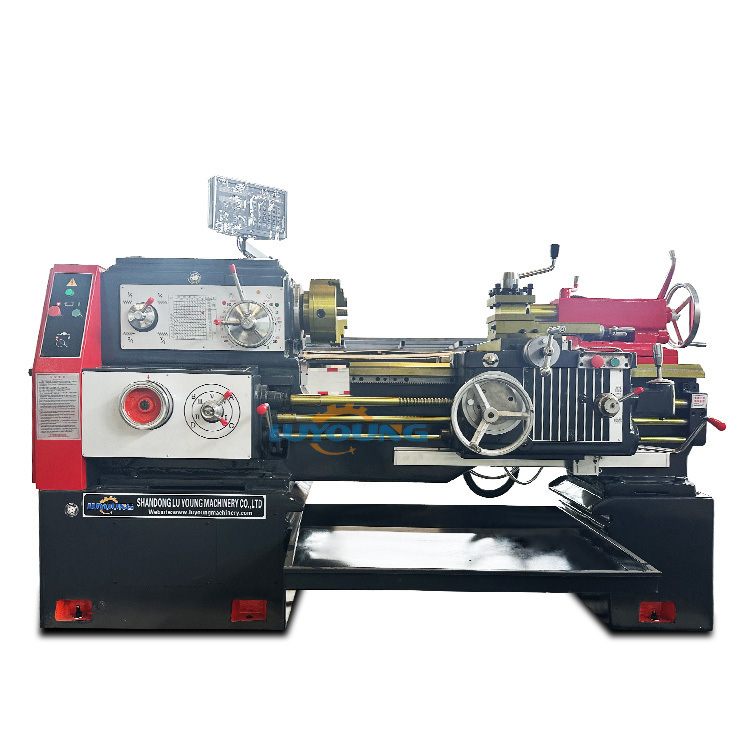

Model Number: C6241x750
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD6000-10000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30/SET
|
Swing Over Bed:
|
410mm
|
Distance Between Two Centers:
|
750mm
|
Chuck:
|
Manual Chuck
|
Read-out:
|
2 Axis Digital Read Out
|
Steady Rest:
|
Optional
|
|
Swing Over Bed:
|
410mm
|
|
Distance Between Two Centers:
|
750mm
|
|
Chuck:
|
Manual Chuck
|
|
Read-out:
|
2 Axis Digital Read Out
|
|
Steady Rest:
|
Optional
|
| Model | Unit | C6136A | CA6140A | CA6240 | CA6150 | CA6250 |
|---|---|---|---|---|---|---|
| Max.Swing over bed | mm | 360 | 400 | 410 | 500 | 500 |
| Max.Swing over carriage | mm | 190 | 210 | 225 | 300 | 300 |
| Max.Swing in gap*Effective gap length | mm | - | - | 630*210 | - | 720*210 |
| Distance from spindle center to bed plane guide | mm | 205 | 205 | 205 | 250 | 250 |
| Max length of bed | mm | 750/1000/1500/2000/2200/3000/4000 | ||||
| Width of bed | mm | 400 | ||||
| Section of turning tool | mm | 25×25 | ||||
| Spindle speeds | rpm | 11-1600/12-1680 | ||||
| Spindle bore | mm | 52 | ||||
| Spindle taper | NO.6(MT6)(φ90 1:20) [φ113 1:20] | |||||
| Range of metric threads (kinds) | mm | (1-192)44(44 kinds) | ||||
| Range of inch threads (kinds) | (2-24tpi)21(21 kinds) | |||||
| Range of module threads (kinds) | 0.25-48(39)(Module 39kinds) | |||||
| Range of pitch threads (kinds) | 1-96DP(37)(37kinds) | |||||
| Max.tail stock spindle travel | mm | 150 | ||||
| Tail stock spindle diameter | mm | 75 | ||||
| Taper of tail stock spindle center hole | NO.5(MT5) | |||||
| Main motor | KW | 7.5KW | ||||
| Bed Length | Packing Dimensions (L*W*H) | Weight |
|---|---|---|
| 750mm | 1900*1400*1630 | 2400*1400*1630 | 1900kg | 2060kg |
| 1000mm | 2400*1400*1630 | 2900*1400*1630 | 2070kg | 2140kg |
| 1500mm | 2900*1400*1630 | 3400*1400*1630 | 2570kg | 2640kg |
| 2000mm | 3400*1400*1630 | 3900*1400*1630 | 2570kg | 2640kg |
