Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

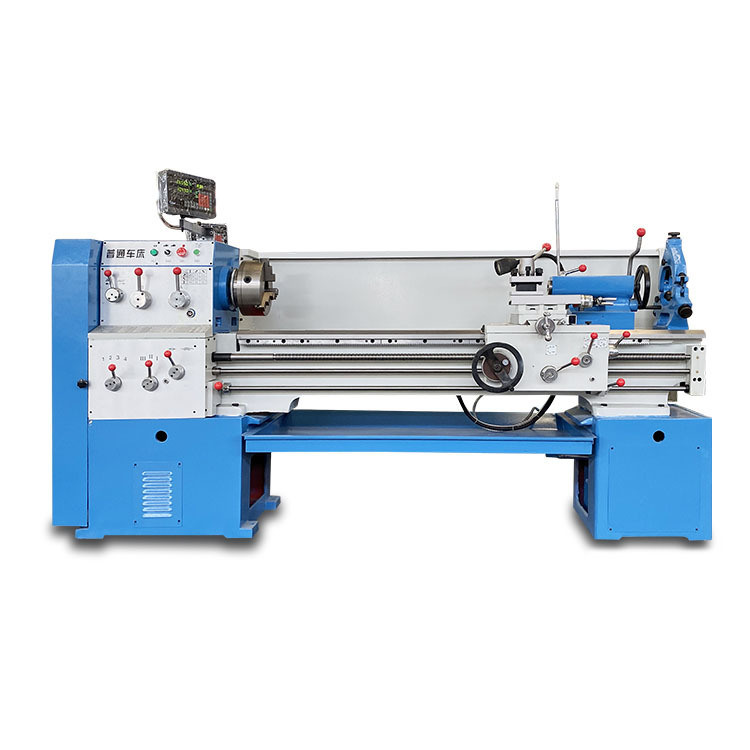

Model Number: CA6241
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: USD6000-10000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 30/SET
|
Spindle:
|
Flat
|
Spindle Bore:
|
52/80mm
|
Chuck:
|
3-jaw Manual Chuck
|
Tailstock:
|
Manual
|
Distance Between Two Centers:
|
750mm
|
|
Spindle:
|
Flat
|
|
Spindle Bore:
|
52/80mm
|
|
Chuck:
|
3-jaw Manual Chuck
|
|
Tailstock:
|
Manual
|
|
Distance Between Two Centers:
|
750mm
|
| Model | Unit | C6136A | CA6140A | CA6240 | CA6150 | CA6250 |
|---|---|---|---|---|---|---|
| Max.Swing over bed | mm | 360 | 400 | 410 | 500 | 500 |
| Max.Swing over carriage | mm | 190 | 210 | 225 | 300 | 300 |
| Max.Swing in gap*Effective gap length | mm | - | - | 630*210 | - | 720*210 |
| Distance from spindle center to bed plane guide | mm | 205 | 205 | 205 | 250 | 250 |
| Max length of bed | mm | 750/1000/1500/2000/2200/3000/4000 | ||||
| Width of bed | mm | 400 | ||||
| Section of turming tool | mm | 25×25 | ||||
| Length | Dimensions (L*W*H) |
|---|---|
| 750mm | 1900*1400*1630 mm | 2400*1400*1630 mm |
| 1000mm | 2400*1400*1630 mm | 2900*1400*1630 mm |
| 1500mm | 2900*1400*1630 mm | 3400*1400*1630 mm |
| 2000mm | 3400*1400*1630 mm | 3900*1400*1630 mm |
| Length | Weight (kg) |
|---|---|
| 750mm | 1900 | 2060 |
| 1000mm | 2070 | 2140 |
| 1500mm | 2570 | 2640 |
| 2000mm | 2570 | 2640 |
