Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

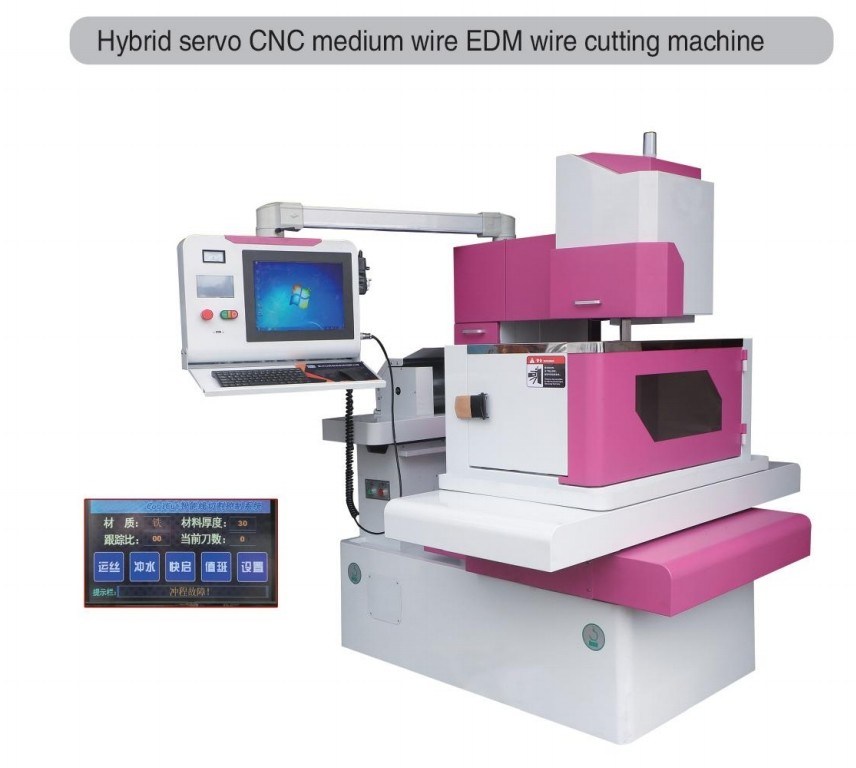

Model Number: SNK400
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 11900-12900
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 100sets
|
Wire Tension:
|
Automatic
|
Cutting Method:
|
Wire EDM
|
Table Travel Size:
|
400mm*300mm
|
X Travel:
|
320mm
|
Machine Parameter:
|
Automatic
|
Warranty:
|
1 Year
|
Cnc Or Not:
|
CNC
|
Wire Guide System:
|
Linear Guide
|
Precision:
|
±0.005mm
|
Voltage:
|
Customized
|
|
Wire Tension:
|
Automatic
|
|
Cutting Method:
|
Wire EDM
|
|
Table Travel Size:
|
400mm*300mm
|
|
X Travel:
|
320mm
|
|
Machine Parameter:
|
Automatic
|
|
Warranty:
|
1 Year
|
|
Cnc Or Not:
|
CNC
|
|
Wire Guide System:
|
Linear Guide
|
|
Precision:
|
±0.005mm
|
|
Voltage:
|
Customized
|
| Parameter | SNK400 | SNK500 | SNK600 | SNK800 |
|---|---|---|---|---|
| Worktable X,Y axis travel | 320×400mm | 400×500mm | 500×630mm | 630×800mm |
| Maximum straight cut thickness | 260mm/300mm | 350mm/400mm | ||
| Maximum carrying weight | 300kg | 500kg | 800kg | 1200kg |
| X,Y minimum command unit | 0.001mm | 0.001mm | 0.001mm | 0.001mm |
| Z-axis ram vertical travel | 200mm/240mm | 300mm | 300mm | |
| Maximum cutting taper | ±3°/80mm | ±3°/80mm | ±3°/80mm | ±3°/80mm |
| U,V minimum command unit | 0.001mm | 0.001mm | 0.001mm | 0.001mm |
| Control method | XY hybrid servo, UV step/XY axis AC servo, UV axis three-phase six-beat (mixed motor optional)/XYUV full step | |||
| Z-axis drive | Simple lift/Electric lift | |||
| Number of linkage control axes | X,Y,U,V four axes | |||
| The maximum stroke of the storage drum | 200mm | 200mm | ||
| Electrode wire diameter range | φ0.15~φ0.20mm (Standard φ0.18mm) | |||
| Wire speed | 1~11.4m/s Variable frequency adjustable | |||
| Precision | ≤0.01mm | |||
| Maximum cutting efficiency | ≥150mm²/min | |||
| Best surface roughness | Ra≤1.0～1.2μm (Cut one and repair two) | |||
| Tank volume | 90L | 90L | ||
| Working fluid filtration method | paper core filter | |||
| Power supply | Three phase 380V±10%; 50±1HZ | |||
| Control System | HL2, HF2, HT2, Autocut, Wincut | |||
| The total power consumption of the machine | 2.3/6kW | 2.3/6kW | 2.3/6kW | 2.3/6kW |
| Maximum machining current | 6A | 6A | 6A | 6A |
| Host net weight | 1500kg | 1800kg | 2200kg | 2800kg |
| Machine tool dimensions (length × width × height) | 1700×1300×2160 | 1960×1620×2160 | 2120×1760×2250 | 2410×2060×2250 |
| Box size (length × width × height) | 2010×1400×2300 | 2220×1800×2300 | 2350×2000×2400 | 2800×2100×2400 |
| Machine tool noise | ≤70dB | ≤70dB | ||
