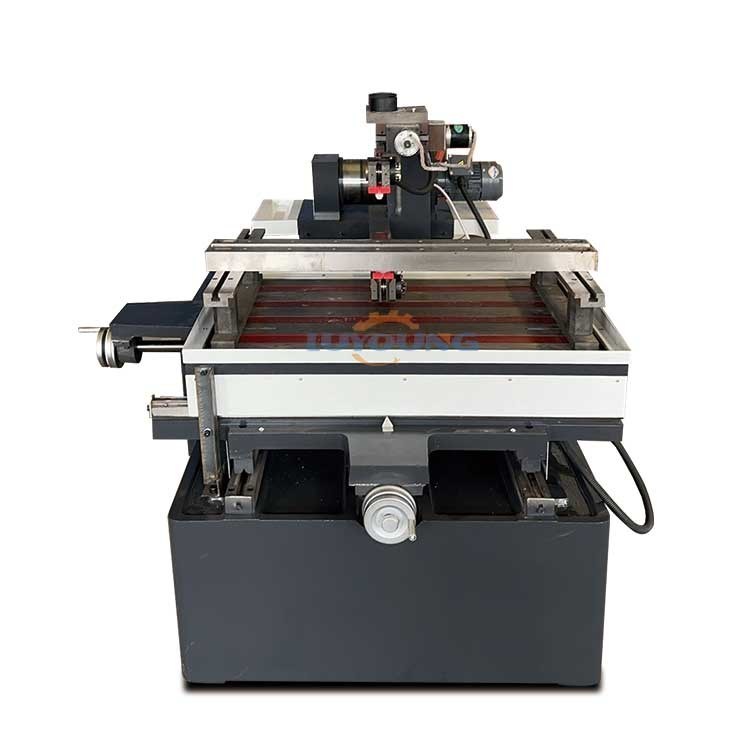

DK7745F Cnc Wire Edm Machine Cutting Fast Speed Metap Processing Machine

Name: DK7745F Cnc Wire Edm Machine Cutting Fast Speed Metap Processing Machine
Brand: shandong lu young machinery co.,ltd
SKU: DK7745F
Price: 7,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Luyoung

Certification: CE

Model Number: DK7745F

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD6000-8000

Packaging Details: Fumigation-free plywood

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100sets

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            cnc edm wire cut machine, cnc wire edm machine cutting, DK7745F cnc wire edm machine


Workbench Size(mm):	830x600	Worktable Travel(mm):	450x550
Surface Roughness Of Machining(μm):	Ra≤2.5	Ra≤2.5:	160mm 2/min
Maximum Cutting Taper:	“+_3 Degree	Max. Load(kg):	450kg
Max. Cutting Thickness(mm):	400	Power:	2.5KW
Dimension(LWH)mm:	1600x1240x1400mm

Workbench Size(mm):	830x600
Worktable Travel(mm):	450x550
Surface Roughness Of Machining(μm):	Ra≤2.5
Ra≤2.5:	160mm 2/min
Maximum Cutting Taper:	“+_3 Degree
Max. Load(kg):	450kg
Max. Cutting Thickness(mm):	400
Power:	2.5KW
Dimension(LWH)mm:	1600x1240x1400mm

DK7745F Cnc Wire Edm Machine Cutting Fast Speed Metap Processing Machine

DK7745F CNC Wire EDM Machine - High-Speed Metal Processing

Key Specifications

Specification	Value
Workbench Size	830 × 600 mm
Worktable Travel	450 × 550 mm
Surface Roughness	Ra ≤ 2.5 μm
Maximum Cutting Speed	160 mm²/min
Maximum Cutting Taper	±3 degree
Max Load Capacity	450 kg
Max Cutting Thickness	400 mm
Power Requirement	2.5 KW
Dimensions (L×W×H)	1600 × 1240 × 1400 mm

Technical Features

4-axis control system
Molybdenum wire diameter: 0.15-0.22 mm
Advanced AUTOCUT software
380V 220Hz power supply
Maximum current: 7A

Advanced Wire EDM Technology

The DK7745F Fast Wire Electrical Discharge Machining (WEDM) machine delivers high-speed precision cutting for metal components. Utilizing a rapidly reciprocating molybdenum wire electrode (8-10 m/s), this system achieves cutting speeds of up to 160 mm²/min with an accuracy of 0.05-0.08 mm.

The cutting process employs electrical spark erosion where the negatively charged wire and positively charged workpiece create high temperatures that precisely melt or vaporize material. The molybdenum wire's high melting point and continuous movement ensure minimal wear while maintaining cutting precision.

Industrial Applications

Precision mold manufacturing
Processing difficult-to-machine materials
Complex part fabrication
Large-thickness mold components

Regular maintenance of guide wheels, guides, molybdenum wire quality control, and cutting fluid management are essential for optimal performance.

Technical Evolution

Developed from 1960s technology, modern fast wire EDM machines now incorporate:

Advanced computer controls
Innovative working media
Composite working fluids
Enhanced surface finish capabilities
Improved environmental performance
