Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

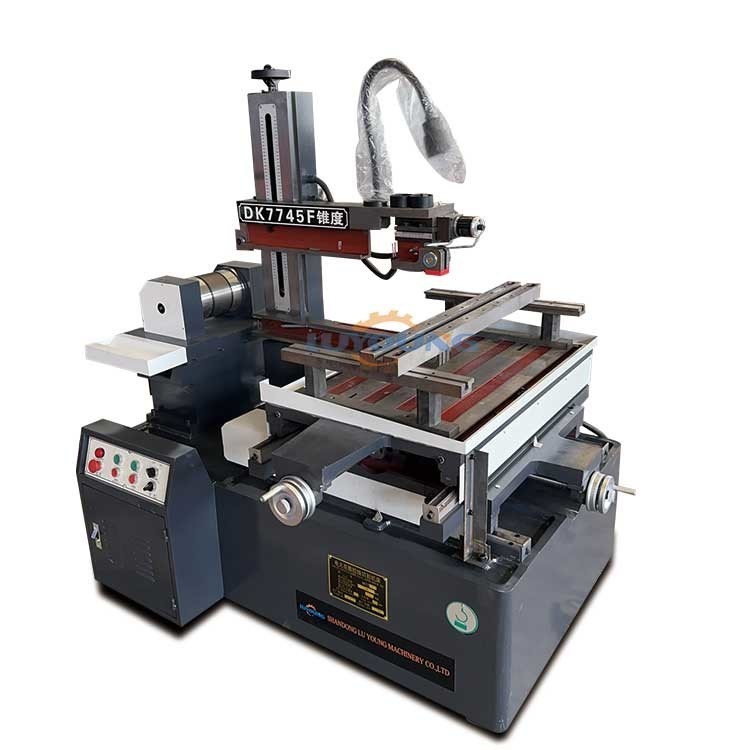

Model Number: DK7745
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD6000-8000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Workbench Size(mm):
|
950x650
|
Worktable Travel(mm):
|
500x630
|
Surface Roughness Of Machining(μm):
|
Ra≤2.5
|
Ra≤2.5:
|
160mm 2/min
|
Maximum Cutting Taper:
|
“+_6 Degree
|
Max. Load(kg):
|
600kg
|
Max. Cutting Thickness(mm):
|
600
|
Power:
|
2.5KW
|
Dimension(L*W*H)mm:
|
1720x1680x1700mm
|
|
Workbench Size(mm):
|
950x650
|
|
Worktable Travel(mm):
|
500x630
|
|
Surface Roughness Of Machining(μm):
|
Ra≤2.5
|
|
Ra≤2.5:
|
160mm 2/min
|
|
Maximum Cutting Taper:
|
“+_6 Degree
|
|
Max. Load(kg):
|
600kg
|
|
Max. Cutting Thickness(mm):
|
600
|
|
Power:
|
2.5KW
|
|
Dimension(L*W*H)mm:
|
1720x1680x1700mm
|
| Attribute | Value |
|---|---|
| Workbench size (mm) | 950x650 |
| Worktable travel (mm) | 500x630 |
| Surface roughness of machining (μm) | Ra≤2.5 |
| Cutting speed | 160mm²/min |
| Maximum cutting taper | ±6 degree |
| Max. load (kg) | 600kg |
| Max. cutting thickness (mm) | 600 |
| Power | 2.5KW |
| Dimension (L*W*H) (mm) | 1720x1680x1700 |
