Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: DK7750F
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD6000-8000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Workbench Size(mm):
|
950x650
|
Worktable Travel(mm):
|
500x630
|
Surface Roughness Of Machining(μm):
|
Ra≤2.5
|
Ra≤2.5:
|
160mm 2/min
|
Maximum Cutting Taper:
|
“+_6 Degree
|
Max. Load(kg):
|
600kg
|
Max. Cutting Thickness(mm):
|
600
|
Power:
|
2.5KW
|
Dimension(L*W*H)mm:
|
1720x1680x1700mm
|
|
Workbench Size(mm):
|
950x650
|
|
Worktable Travel(mm):
|
500x630
|
|
Surface Roughness Of Machining(μm):
|
Ra≤2.5
|
|
Ra≤2.5:
|
160mm 2/min
|
|
Maximum Cutting Taper:
|
“+_6 Degree
|
|
Max. Load(kg):
|
600kg
|
|
Max. Cutting Thickness(mm):
|
600
|
|
Power:
|
2.5KW
|
|
Dimension(L*W*H)mm:
|
1720x1680x1700mm
|
| Attribute | Value |
|---|---|
| Workbench Size (mm) | 950x650 |
| Worktable Travel (mm) | 500x630 |
| Surface Roughness of Machining (μm) | Ra≤2.5 |
| Maximum Cutting Speed | 160mm²/min |
| Maximum Cutting Taper | ±6 degree |
| Max. Load (kg) | 600kg |
| Max. Cutting Thickness (mm) | 600 |
| Power | 2.5KW |
| Dimension (L*W*H) mm | 1720x1680x1700mm |

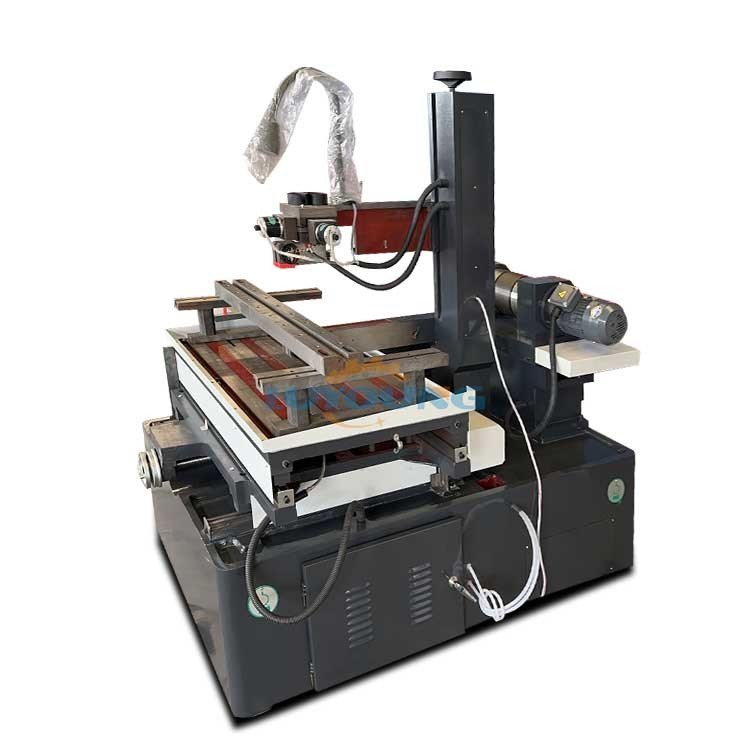

This High-Speed Wire EDM operates using a rapidly reciprocating molybdenum wire electrode (8-10 meters per second) that can be reused, delivering exceptional cutting speeds while maintaining accuracy between 0.05 to 0.08 millimeters.
The machine utilizes an advanced electrical discharge process where the negatively charged wire and positively charged workpiece create sparks when within discharge gap distance. These sparks generate high temperatures that precisely melt or vaporize the workpiece surface, while the wire movement and working fluid remove material to form clean, accurate cuts.
For optimal performance, regular maintenance of guide wheels, guides, and quality control of molybdenum wire and cutting fluid is recommended. The DK7750F represents decades of technological advancement in EDM technology, offering improved efficiency, surface finish, and environmental performance.
