Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: DK7750F
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD6000-8000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Workbench Size(mm):
|
950x650
|
Worktable Travel(mm):
|
500x630
|
Surface Roughness Of Machining(μm):
|
Ra≤2.5
|
Ra≤2.5:
|
160mm 2/min
|
Maximum Cutting Taper:
|
“+_6 Degree
|
Max. Load(kg):
|
600kg
|
Max. Cutting Thickness(mm):
|
600
|
Power:
|
2.5KW
|
Dimension(L*W*H)mm:
|
1720x1680x1700mm
|
|
Workbench Size(mm):
|
950x650
|
|
Worktable Travel(mm):
|
500x630
|
|
Surface Roughness Of Machining(μm):
|
Ra≤2.5
|
|
Ra≤2.5:
|
160mm 2/min
|
|
Maximum Cutting Taper:
|
“+_6 Degree
|
|
Max. Load(kg):
|
600kg
|
|
Max. Cutting Thickness(mm):
|
600
|
|
Power:
|
2.5KW
|
|
Dimension(L*W*H)mm:
|
1720x1680x1700mm
|
| Attribute | Value |
|---|---|
| Workbench Size (mm) | 950x650 |
| Worktable Travel (mm) | 500x630 |
| Surface Roughness (μm) | Ra≤2.5 |
| Maximum Cutting Speed | 160mm²/min |
| Maximum Cutting Taper | ±6 degree |
| Max. Load (kg) | 600kg |
| Max. Cutting Thickness (mm) | 600 |
| Power | 2.5KW |
| Dimensions (L×W×H) (mm) | 1720x1680x1700 |
| Control Axis | 4 axis |
|---|---|
| Molybdenum Wire Diameter (mm) | 0.15-0.22 |
| Software | AUTOCUT |
| Voltage | 380v 220HZ |
| Max. Current | 7A |

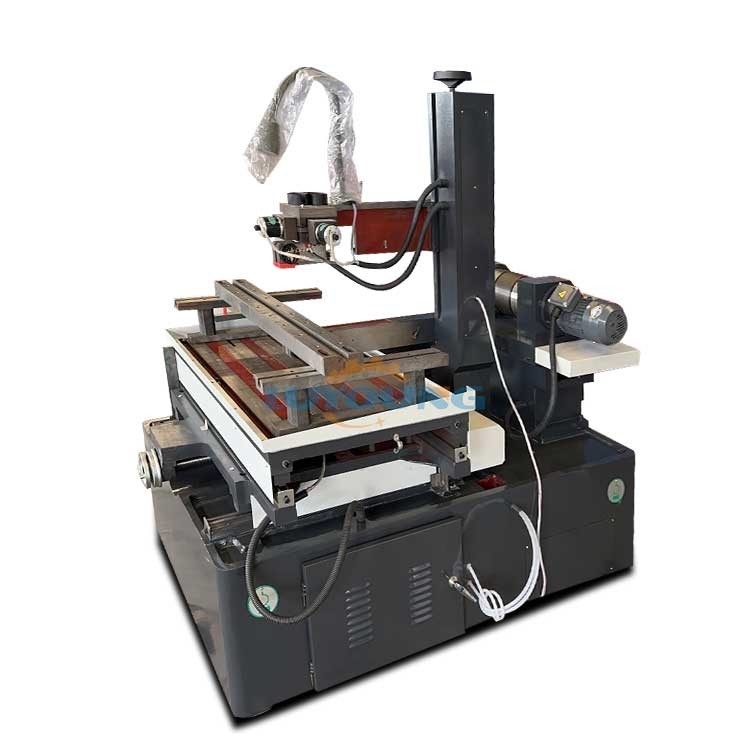

The Fast Wire Electrical Discharge Machining (WEDM) machine operates using a rapidly reciprocating molybdenum wire electrode (8-10 m/s) that can be reused, achieving high cutting speeds with typical accuracy of 0.05-0.08 mm.
The process utilizes electrical sparks between the negatively charged wire and positively charged workpiece to precisely cut through metal. The wire's high melting point and continuous movement ensure minimal wear while effectively removing workpiece material.
