Product Details
Place of Origin: CHINA
Brand Name: Lu Young
Certification: CE,ISO
Model Number: vmc1160
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $25000-$35000
Packaging Details: plywood box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month
|
Worktable Size:
|
1200*600
|
3 Axis Travel:
|
1100*600*600
|
Spindle Taper:
|
BT40
|
Spindle Speed:
|
8000/10000/12000rpm
|
Spindle Motor:
|
11/15kw
|
Rapid Feeding Speed:
|
24 Liner Guide Way
|
Position Accuracy:
|
±0.005mm
|
Repeat Positional Accuracy:
|
±0.003
|
ATC:
|
24 Arm Type ATC
|
Max Loading:
|
1000kg
|
|
Worktable Size:
|
1200*600
|
|
3 Axis Travel:
|
1100*600*600
|
|
Spindle Taper:
|
BT40
|
|
Spindle Speed:
|
8000/10000/12000rpm
|
|
Spindle Motor:
|
11/15kw
|
|
Rapid Feeding Speed:
|
24 Liner Guide Way
|
|
Position Accuracy:
|
±0.005mm
|
|
Repeat Positional Accuracy:
|
±0.003
|
|
ATC:
|
24 Arm Type ATC
|
|
Max Loading:
|
1000kg
|
| Attribute | Value |
|---|---|
| Worktable Size | 1200×600mm |
| 3 Axis Travel | 1100×600×600mm |
| Spindle Taper | BT40 |
| Spindle Speed | 8000/10000/12000rpm |
| Spindle Motor | 11/15kw |
| Rapid Feeding Speed | 24 liner guide way |
| Position Accuracy | ±0.005mm |
| Repeat Positional Accuracy | ±0.003mm |
| ATC | 24 arm type ATC |
| Max Loading | 1000kg |

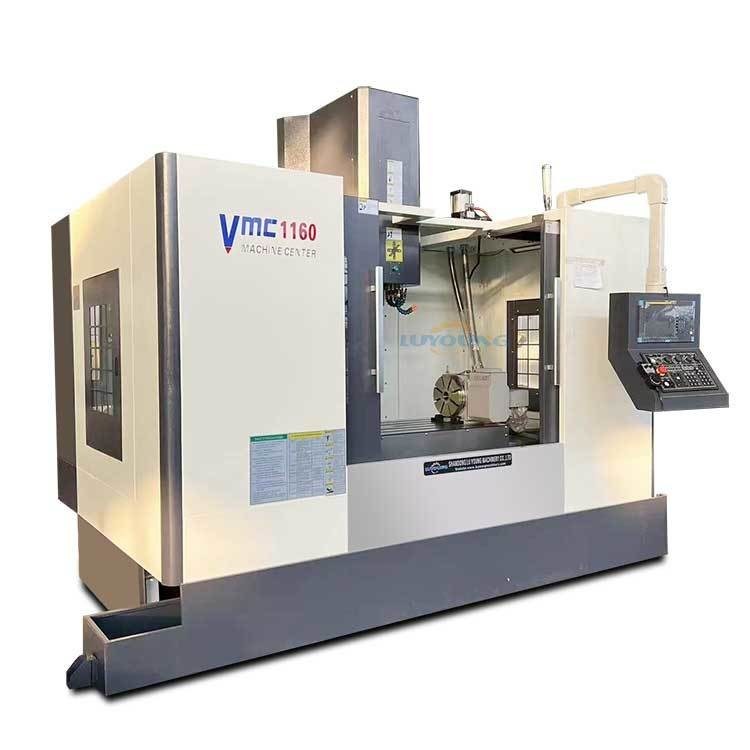

The VMC1160 CNC Vertical Machining Center combines mechanical precision with advanced numerical control for efficient machining of complex parts. As one of the world's most widely used CNC machine tools, it offers comprehensive processing capabilities that can complete multiple operations in a single setup, achieving precision 5-10 times greater than conventional equipment.
| Item | VMC1160 |
|---|---|
| Worktable Size (length×width) | 1200×600mm |
| T Slot | 5-18×120mm |
| Max Loading Weight | 1000kg |
| X-Axis Travel | 1100mm |
| Z-Axis Travel | 600mm |
| Spindle Nose to Table Distance | 130-780mm |
| Spindle Center to Column Distance | 650mm |
| Max Spindle Speed | 8000/10000/12000rpm |
| Spindle Motor Power | 11/15kw |
| Rapid Feeding Speed (X,Y,Z) | 24/24/24 m/min (liner guideway) |
| Positional Accuracy | ±0.005mm |
| Repeat Positional Accuracy | ±0.003mm |
| Auto Tool Changer | 24 arm type |
| Machine Weight | 7200kg |
Horizontal & vertical CNC rotary tables available as optional configurations for specialized jobs, improving processing efficiency and reducing workflow.
Optional workpiece and tool measuring systems from METROL, RENISHAW or PIONEER.
Optional chip conveyor for efficient collection and transfer of metal/non-metal scraps, compatible with coolant recycling systems.
