Product Details
Place of Origin: CHINA
Brand Name: luyoung
Certification: CE
Model Number: vmc1580
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: $36900-$49000
Packaging Details: Non-fumigating wooden cases
Delivery Time: 30DAYS
Payment Terms: T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 10/SET
|
Table Size:
|
1600*800mm
|
Color:
|
Customized According To Customer Requirements
|
Z Motor Torque:
|
7.7N.m
|
Product Type:
|
Cnc 3/4/5 Axis Machine
|
Cnc Or Not:
|
CNC
|
Spindle Inner Cone:
|
BT40/50
|
Atc Type:
|
Armless /arm
|
|
Table Size:
|
1600*800mm
|
|
Color:
|
Customized According To Customer Requirements
|
|
Z Motor Torque:
|
7.7N.m
|
|
Product Type:
|
Cnc 3/4/5 Axis Machine
|
|
Cnc Or Not:
|
CNC
|
|
Spindle Inner Cone:
|
BT40/50
|
|
Atc Type:
|
Armless /arm
|
| Attribute | Value |
|---|---|
| Table size | 1600*800mm |
| Color | Customized According To Customer Requirements |
| Z Motor Torque | 7.7N.m |
| Product Type | Cnc 3/4/5 Axis Machine |
| Cnc Or Not | CNC |
| Spindle Inner Cone | BT40/50 |
| Atc Type | armless /arm |
| Specification | Value |
|---|---|

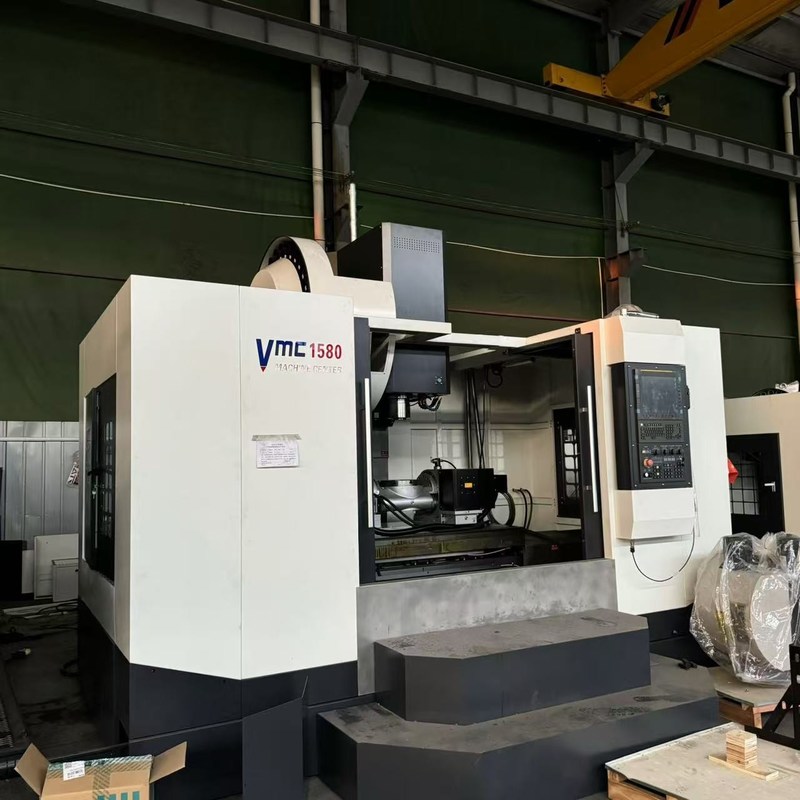

| Item | VMC1580 |
| Size of worktable(length×width)mm | 1700*800 |
| T slot (mm) | 5-22x150 |
| Max loading weight on worktable | 1500 |
| X-Axis travel(mm) | 1500 |
| Y-Axis travel(mm) | 800 |
| Z-Axis travel(mm) | 700 |
| Distance between spindle nose and table | 170-840 |
| Distance between spindlecenter and column(mm) | 810 |
| Spindle taper | BT50-155 |
| Max. spindle speed( rpm) | 8000/10000/12000 |
| Spindle motor power(Kw) | 18.5kw |
| Rapid feeding speed: X,Y,Z axis m/min | 16/16/16 (24/24//24 liner guidway) |
| Fast cutting speed m /min | 10m/min |
| Positional accuracy | ±0.01 mm |
| Repeat positional accuracy | ±0.005mm |
| Auto Tool changer type | 16 tools head type tool changer(optional 24 arm type auto tool changer) |
| Max. tool length | 300mm |
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) |
| Max.tool weight | 8kg |
| Tool changing time(tool-to-tool) | 7sec |
| Air pressure | 0.6 Mpa |
| Machine weight | 13000KG |
| Overall size(mm) | 4300*3200*3100 |
