Product Details
Place of Origin: CHINA
Brand Name: luyoung
Certification: CE
Model Number: vmc650
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: $16000-$25000
Packaging Details: Non-fumigating wooden cases
Delivery Time: 30days
Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability: 10/set
|
Other Name:
|
Cnc Milling Machine
|
Table Size:
|
900*400mm
|
Automatic Tool Changer:
|
Yes
|
Product Type:
|
Vertical CNC Machine
|
Condition:
|
New
|
Z Travel:
|
500mm
|
Precision:
|
High Precision
|
Applicable Industries:
|
Building Material Shops, Factory
|
Design Height:
|
670mm
|
Spindle Taper:
|
BT40
|
Spindle Speed:
|
10000 RPM
|
Function:
|
Vertical Milling Machining
|
Service:
|
Overseas Service
|
|
Other Name:
|
Cnc Milling Machine
|
|
Table Size:
|
900*400mm
|
|
Automatic Tool Changer:
|
Yes
|
|
Product Type:
|
Vertical CNC Machine
|
|
Condition:
|
New
|
|
Z Travel:
|
500mm
|
|
Precision:
|
High Precision
|
|
Applicable Industries:
|
Building Material Shops, Factory
|
|
Design Height:
|
670mm
|
|
Spindle Taper:
|
BT40
|
|
Spindle Speed:
|
10000 RPM
|
|
Function:
|
Vertical Milling Machining
|
|
Service:
|
Overseas Service
|

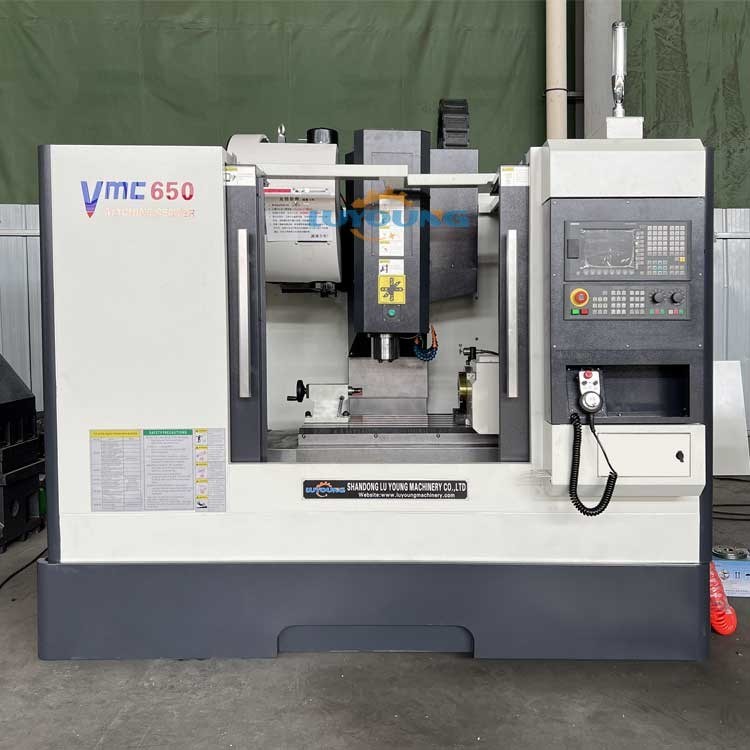

The VMC650 is a high-precision, automatic CNC vertical machining center designed for efficient metal milling operations. With 3/4/5 axis capabilities and an automatic tool changer, this machine delivers exceptional performance for building material shops and manufacturing facilities.
| Table Size | 900×400mm |
| X-Axis Travel | 700mm |
| Y-Axis Travel | 450mm |
| Z-Axis Travel | 500mm |
| Spindle to Table Distance | 120-670mm |
| Spindle Power | 5.5/7.5kw |
| Rapid Feed Speed | 24/24/18mm (X/Y/Z) |
| Fast Cutting Speed | 10m/min |
| Positional Accuracy | ±0.01mm |
| Repeat Accuracy | ±0.005mm |
| Max Tool Length | 300mm |
| Max Tool Diameter | Φ80/φ150 |
| Power Requirements | 380V 50HZ, 10KVA |
| Specification | VMC550L | VMC650 | VMC850 |
|---|---|---|---|
| Worktable Size | 800×300mm | 900×400mm | 1000×500mm |
| Max Loading Weight | 300kg | 500kg | 600kg |
| X-Axis Travel | 600mm | 700mm | 800mm |
| Y-Axis Travel | 350mm | 450mm | 500mm |
| Z-Axis Travel | 450mm | 500mm | 500mm |
| Spindle Power | 5.5kw | 5.5/7.5kw | 7.5/11kw |
| Machine Weight | 2700KG | 4000KG | N/A |
This CNC vertical machining center is ideal for precision metalworking in various industries including building material manufacturing, automotive parts production, and general industrial machining applications.
