Product Details
Place of Origin: CHINA
Brand Name: luyoung
Certification: CE

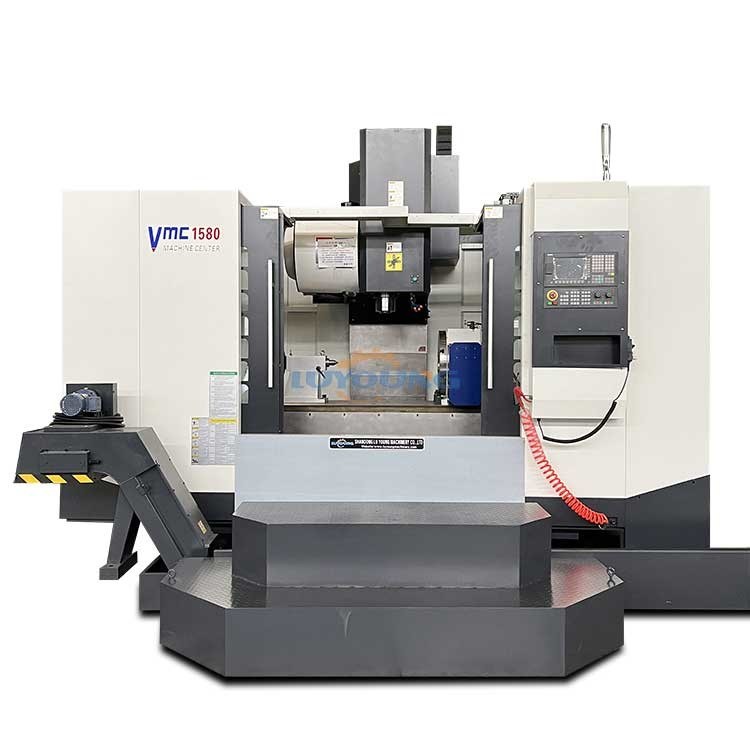

Model Number: vmc1580
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: $37000-$49900
Packaging Details: Non-fumigating wooden cases
Delivery Time: 35DAYS
Payment Terms: T/T
Supply Ability: 10/SET
|
Core Components:
|
Motor, PLC, Gearbox
|
Table Size:
|
1600*700mm
|
Year:
|
2025
|
Machine Color:
|
As Your Requirement
|
Color:
|
Customized
|
Port:
|
Qingdao Or Shanghai Port
|
Keyword:
|
Cnc Milling Machine
|
Key Selling Points:
|
High Productivity
|
Product Type:
|
Cnc 3/4/5 Axis Machine
|
Cnc Or Not:
|
CNC
|
Spindle Inner Cone:
|
BT40/50
|
Application:
|
VERTICAL Milling Machine
|
Precision:
|
High Precision
|
Marketing Type:
|
New Product 2025
|
Condition:
|
New Machine
|
|
Core Components:
|
Motor, PLC, Gearbox
|
|
Table Size:
|
1600*700mm
|
|
Year:
|
2025
|
|
Machine Color:
|
As Your Requirement
|
|
Color:
|
Customized
|
|
Port:
|
Qingdao Or Shanghai Port
|
|
Keyword:
|
Cnc Milling Machine
|
|
Key Selling Points:
|
High Productivity
|
|
Product Type:
|
Cnc 3/4/5 Axis Machine
|
|
Cnc Or Not:
|
CNC
|
|
Spindle Inner Cone:
|
BT40/50
|
|
Application:
|
VERTICAL Milling Machine
|
|
Precision:
|
High Precision
|
|
Marketing Type:
|
New Product 2025
|
|
Condition:
|
New Machine
|
| Core Components | Motor, PLC, Gearbox |
|---|---|
| Table Size | 1600×700mm |
| Year | 2025 |
| Machine Color | Customized (As Your Requirement) |
| Port | Qingdao or Shanghai Port |
| Key Selling Points | High Productivity |
| Product Type | CNC 3/4/5 Axis Machine |
| Spindle Inner Cone | BT40/50 |
| Application | VERTICAL Milling Machine |
| Precision | High Precision |
| Size of Worktable (length×width) | 1600×700mm |
|---|---|
| T Slot (mm) | 5-22×150 |
| Max Loading Weight on Worktable | 1500kg |
| X-Axis Travel | 1500mm |
| Y-Axis Travel | 800mm |
| Z-Axis Travel | 700mm |
| Distance Between Spindle Nose and Table | 170-840mm |
| Distance Between Spindle Center and Column | 810mm |
| Spindle Taper | BT50-155 |
| Max. Spindle Speed (rpm) | 8000/10000/12000 |
| Spindle Motor Power | 18.5kw |
| Rapid Feeding Speed (X,Y,Z axis) | 16/16/16 m/min (24/24/24 linear guideway) |
| Fast Cutting Speed | 10m/min |
| Positional Accuracy | ±0.01mm |
| Repeat Positional Accuracy | ±0.005mm |
| Auto Tool Changer Type | 16 tools head type (optional 24 arm type) |
| Max. Tool Length | 300mm |
| Max. Tool Diameter | Φ80 (adjacent tool)/φ150 (not adjacent tool) |
| Max. Tool Weight | 8kg |
| Tool Changing Time | 7sec |
| Air Pressure | 0.6 Mpa |
| Machine Weight | 13000kg |
| Overall Size | 4300×3200×3100mm |
