Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

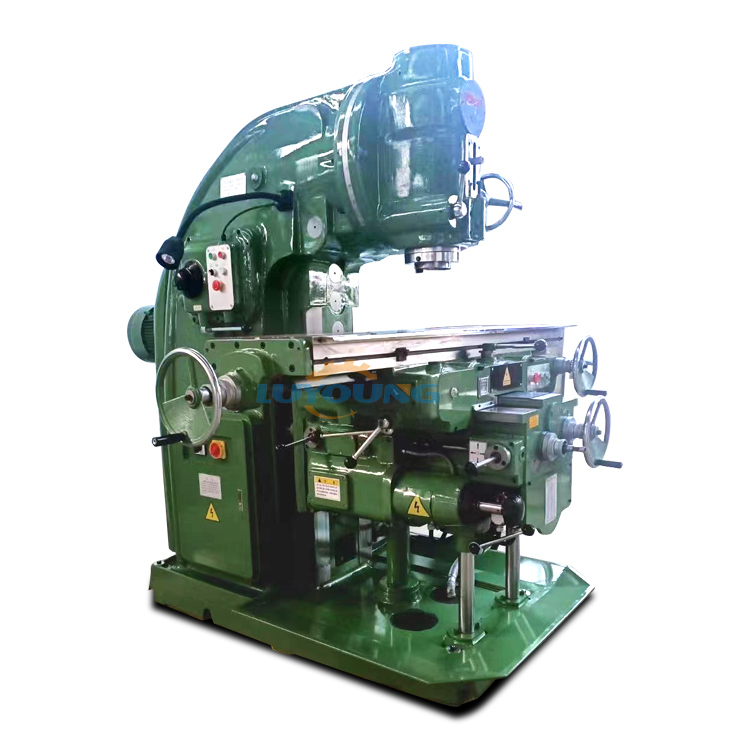

Model Number: X5040
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD$8000-USD18000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30/SET
|
Size Of Worktable（ Mm）:
|
1700x400
|
Swivelangleof Vertical Millinghead:
|
45degree
|
Longitudinal Worktabletravel(mm) (manual/auto):
|
9200/880
|
Mainmotor Power(KW):
|
11KW
|
|
Size Of Worktable（ Mm）:
|
1700x400
|
|
Swivelangleof Vertical Millinghead:
|
45degree
|
|
Longitudinal Worktabletravel(mm) (manual/auto):
|
9200/880
|
|
Mainmotor Power(KW):
|
11KW
|
| Item | X5040 Specifications |
|---|---|
| Size of worktable (mm) | 1700×400 |
| Swivel angle of vertical milling head | ±45° |
| Longitudinal worktable travel (mm) (manual/auto) | 900/880 |
| Horizontal worktable travel (mm) (manual/auto) | 315/300 |
| Vertical worktable travel (mm) (manual/auto) | 385/365 |
| Rapid speed of table (X/Y/Z) (mm/min) | X2300 Y2300 Z770 |
| Spindle speed step | 18 |
| Spindle taper | 7:24 ISO50 |
| Spindle speed range (r/min) | 30-1500 |
| Feed range of table travel | 18 Level |
| Distance between spindle center to vertical guide rail (mm) | 400 |
| Distance between spindle nose and table (mm) | 30-500 |
| Main motor power (KW) | 11kw |
| Feed motor power (KW) | 3kw |
| Motor power of cooling pump (KW) | 0.09kw |
| Overall dimension (L×W×H) (mm) | 2556×2159×2298 |
| Packaging size (L×W×H) (mm) | 2650×2250×2480 |
| Net weight (kg) | 4250 |
| Gross weight (kg) | 4600 |
Thanks to its high rigidity and high torque, the X5040 is highly suitable for heavy-duty cutting. It can handle large cutting depths and high feed rates when milling planes and grooves, making it a representative of "great strength."
By equipping different milling cutters (such as end mills, face mills, keyway cutters, drills, etc.), it can perform various machining operations:
When used with accessories like a dividing head or rotary table, it can machine more complex parts such as spiral grooves and gears.
The mechanical structure is relatively simple, and the electrical system is not complex (traditional relay control). This makes it very user-friendly for both operators and maintenance personnel, and faults are easy to diagnose and repair.
As a universal machine tool, its acquisition cost is much lower compared to CNC milling machines. It is a highly economical and practical choice for applications that do not require complex contour machining.
