Product Details
Place of Origin: Shandong, China
Brand Name: lu young
Payment & Shipping Terms
Price: $22,500.00/sets >=1 sets
|
Condition:
|
New
|
Spindle Taper:
|
BT40
|
No. Of Spindles:
|
Single
|
Type:
|
VERTICAL
|
Dimension(L*W*H):
|
2780*2450*2700mm
|
Weight (T):
|
5
|
Table Size (mm):
|
1000*500
|
Table Travel (X) (mm):
|
800
|
Table Travel (Y) (mm):
|
500
|
Table Travel (Z) (mm):
|
500
|
Positioning Accuracy (mm):
|
0.006
|
Repeatability (X/Y/Z) (mm):
|
0.003
|
Range Of Spindle Speed(r.p.m):
|
50 - 10000 R.p.m
|
Max. Table Load(kg):
|
400 Kg
|
Min. Time Of Tool Change(s):
|
6
|
Tool Magazine Capacity:
|
16, 20, 24
|
Key Selling Points:
|
Automatic
|
Warranty:
|
1 Year
|
Voltage:
|
220V/380V
|
Marketing Type:
|
New Product 2020
|
Machinery Test Report:
|
Provided
|
Video Outgoing-inspection:
|
Provided
|
Warranty Of Core Components:
|
1 Year
|
Machining Capacity:
|
Medium Duty
|
Rapid Feed Speed(mm/min):
|
0 - 5 Mm/min
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
Machine Type:
|
Vertical Machine Centers
|
Product Name:
|
4-axis Vertical Cnc Machining Center
|
Controlling Mode:
|
Cnc System
|
Product Type:
|
VMC 850 Machining Center
|
Processing:
|
Maching Center
|
Spindle Speed:
|
8000 Rpm
|
Application:
|
Metal Machining
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
After Warranty Service:
|
Online Support
|
|
Condition:
|
New
|
|
Spindle Taper:
|
BT40
|
|
No. Of Spindles:
|
Single
|
|
Type:
|
VERTICAL
|
|
Dimension(L*W*H):
|
2780*2450*2700mm
|
|
Weight (T):
|
5
|
|
Table Size (mm):
|
1000*500
|
|
Table Travel (X) (mm):
|
800
|
|
Table Travel (Y) (mm):
|
500
|
|
Table Travel (Z) (mm):
|
500
|
|
Positioning Accuracy (mm):
|
0.006
|
|
Repeatability (X/Y/Z) (mm):
|
0.003
|
|
Range Of Spindle Speed(r.p.m):
|
50 - 10000 R.p.m
|
|
Max. Table Load(kg):
|
400 Kg
|
|
Min. Time Of Tool Change(s):
|
6
|
|
Tool Magazine Capacity:
|
16, 20, 24
|
|
Key Selling Points:
|
Automatic
|
|
Warranty:
|
1 Year
|
|
Voltage:
|
220V/380V
|
|
Marketing Type:
|
New Product 2020
|
|
Machinery Test Report:
|
Provided
|
|
Video Outgoing-inspection:
|
Provided
|
|
Warranty Of Core Components:
|
1 Year
|
|
Machining Capacity:
|
Medium Duty
|
|
Rapid Feed Speed(mm/min):
|
0 - 5 Mm/min
|
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
|
Machine Type:
|
Vertical Machine Centers
|
|
Product Name:
|
4-axis Vertical Cnc Machining Center
|
|
Controlling Mode:
|
Cnc System
|
|
Product Type:
|
VMC 850 Machining Center
|
|
Processing:
|
Maching Center
|
|
Spindle Speed:
|
8000 Rpm
|
|
Application:
|
Metal Machining
|
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
|
After Warranty Service:
|
Online Support
|
BT40 Spindle Taper | 5T Weight | 4-Axis Precision Machining
| Specification | Detail |
|---|---|
| Condition | New |
| Spindle Taper | BT40 |
| Type | VERTICAL |
| Dimensions (L×W×H) | 2780×2450×2700mm |
| Weight | 5T |
| Table Size | 1000×500mm |
| Positioning Accuracy | 0.006mm |
| Repeatability (X/Y/Z) | 0.003mm |
| Spindle Speed Range | 50-10000 r.p.m |
| Max. Table Load | 400kg |
| Tool Magazine Capacity | 16, 20, 24 |
| Warranty | 1 Year |

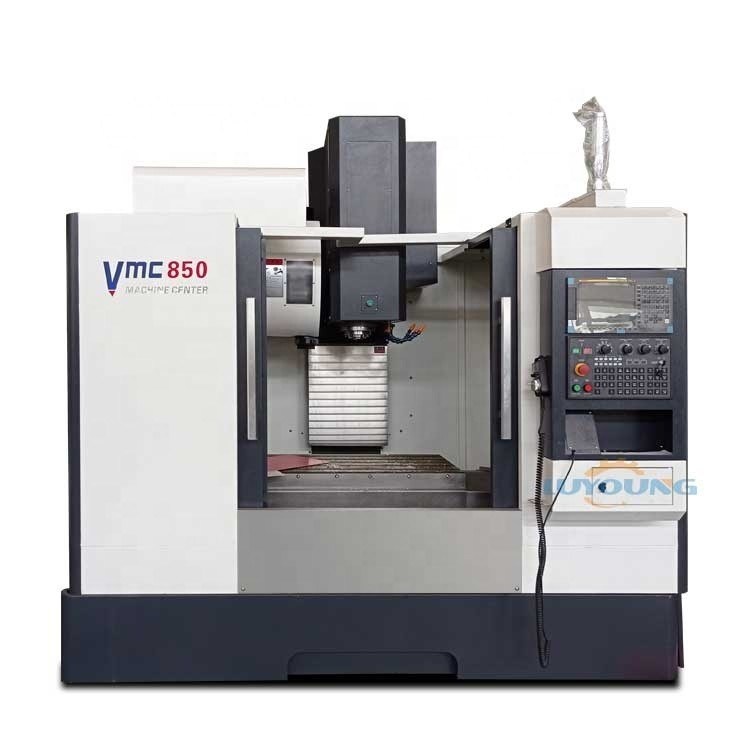

The VMC850 is a high precision 4-axis vertical machining center with BT40 spindle taper, designed for mold, automotive, aerospace, and general machinery manufacturing applications. This machine offers exceptional accuracy and versatility for machining, drilling, tapping, and boring operations.
| Specification | Detail |
|---|---|
| Worktable Size | 1000×500mm |
| X-Axis Travel | 800mm |
| Y-Axis Travel | 550mm |
| Z-Axis Travel | 500mm |
| Max Spindle Speed | 8000/10000/12000 rpm |
| Spindle Motor Power | 7.5/11kw |
| Rapid Feed Speed | 24m/min (X,Y,Z) |
| Positional Accuracy | ±0.005mm |
| Repeat Positional Accuracy | ±0.003mm |
| Machine Weight | 5500KG |
Standard configuration features a high-speed BT40-150 belt driven Taiwan spindle (8000RPM) with simple, compact structure offering high efficiency, low noise, low vibration, and excellent surface finishing. Optional spindles available at 10000/12000/15000 rpm.
Standard Taiwan hat type (16 tools) magazine offers low wear, long life, easy adjustment, and low failure rate. Optional 20/24 disc type auto tool changer available with tool change speed within 4 seconds.
Multiple controller options available including GSK, KND, SIEMENS, SYNTEC, and FANUC systems to meet various operational requirements.
What's the payment term?
Standard payment terms are 30% deposit by T/T in advance, with 70% balance paid before shipment. We also accept irrevocable letter of credit at sight, D/P or D/A.
What's the quality warranty?
We provide a 1-year warranty on all machines. For any defective parts under normal operation, we will replace them immediately at no cost.
What's the delivery time?
Delivery typically occurs within 1 month after receiving the 30% deposit, depending on product configuration.
