Product Details
Place of Origin: CHINA
Brand Name: luyoung
Certification: CE

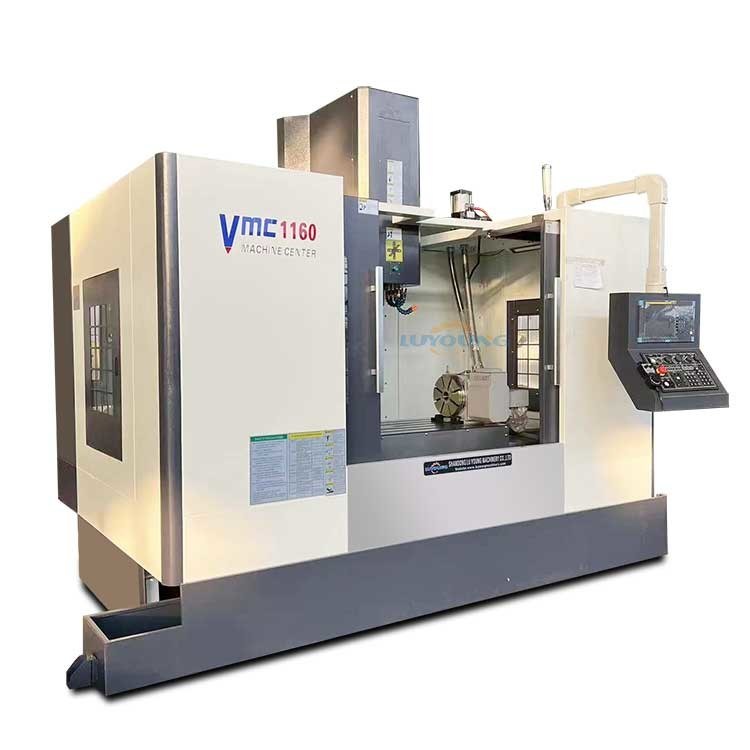

Model Number: vmc1160
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: $26000-$32000
Packaging Details: Non-fumigating wooden cases
Delivery Time: 30DAYS
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 10/SET
|
Vertical Stroke:
|
780mm
|
Port:
|
Qingdao Or Shanghai Port
|
Machine Color:
|
As Your Requirement
|
Power Requirement:
|
380V, 3-phase
|
Application:
|
Cnc Milling Machine
|
Condition:
|
New
|
Color:
|
Customized According To Customer Requirements
|
Table Size:
|
1100*600mm
|
|
Vertical Stroke:
|
780mm
|
|
Port:
|
Qingdao Or Shanghai Port
|
|
Machine Color:
|
As Your Requirement
|
|
Power Requirement:
|
380V, 3-phase
|
|
Application:
|
Cnc Milling Machine
|
|
Condition:
|
New
|
|
Color:
|
Customized According To Customer Requirements
|
|
Table Size:
|
1100*600mm
|
| Vertical Stroke | 780mm |
| Port | Qingdao or Shanghai Port |
| Machine Color | Customizable |
| Power Requirement | 380V, 3-phase |
| Application | CNC Milling Machine |
| Condition | New |
| Table Size | 1100 × 600mm |
| Items | Details | Unit | VMC1160 |
|---|---|---|---|
| Table Size | Size | mm | 1100 × 600 |
| Travel of 3 axis (X/Y/Z) | mm | 1100/600/600 | |
| Max table load | kg | 1000 | |
| T-slot | Size | mm | 5-18 × 120 |
| Spindle taper | BT40 | ||
| Distance from Spindle center to Column guide | mm | 650 | |
| Distance of spindle head to table | mm | 130-780 | |
| Max speed | rpm | 8000 | |
| Motor power | KW | 11/15 | |
| Positioning accuracy (X/Y/Z) | mm | ± 0.01/±0.008/±0.008 | |
| Repeatability (X/Y/Z) | mm | ± 0.005 | |
| Power of X/Y/Z axis motor | Kw | 2.5/2.5/2.5 | |
| Torque of X/Z | Nm | 16/24 | |
| Rapid feed of X/Y/Z | m/min | 36/36/24 (linear guide way) | |
| Cutting feed of X/Y/Z | m/min | 10 | |
| Weight | Kg | 7800 | |
| Dimension | mm | 3300 × 2800 × 2700 |
