shandong lu young machinery co.,ltd
sales@luyoungmachinery.com
86-538-8881618
Product Details
Place of Origin: China
Payment & Shipping Terms
Price: $35,000.00/sets 1-4 sets
|
Condition:
|
New
|
Spindle Taper:
|
BT40
|
No. Of Spindles:
|
Single
|
Type:
|
VERTICAL
|
Weight (T):
|
7.3 T
|
Table Size (mm):
|
1200*600
|
CNC Control System:
|
GSK, FANUC, MITSUBISHI, KND, Siemens
|
Number Of Axes:
|
3, 4, 5
|
Table Travel (X) (mm):
|
1100
|
Table Travel (Y) (mm):
|
600
|
Table Travel (Z) (mm):
|
600
|
Positioning Accuracy (mm):
|
±0.005
|
Repeatability (X/Y/Z) (mm):
|
±0.003
|
Spindle Motor Power(kW):
|
11/15
|
Max. Table Load(kg):
|
650 Kg
|
Min. Time Of Tool Change(s):
|
2
|
Tool Magazine Capacity:
|
16, 20, 24
|
Key Selling Points:
|
Competitive Price
|
Warranty:
|
1 Year
|
Marketing Type:
|
Newest
|
Machinery Test Report:
|
Provided
|
Video Outgoing-inspection:
|
Provided
|
Warranty Of Core Components:
|
1 Year
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
CNC Or Not:
|
CNC
|
Product Type:
|

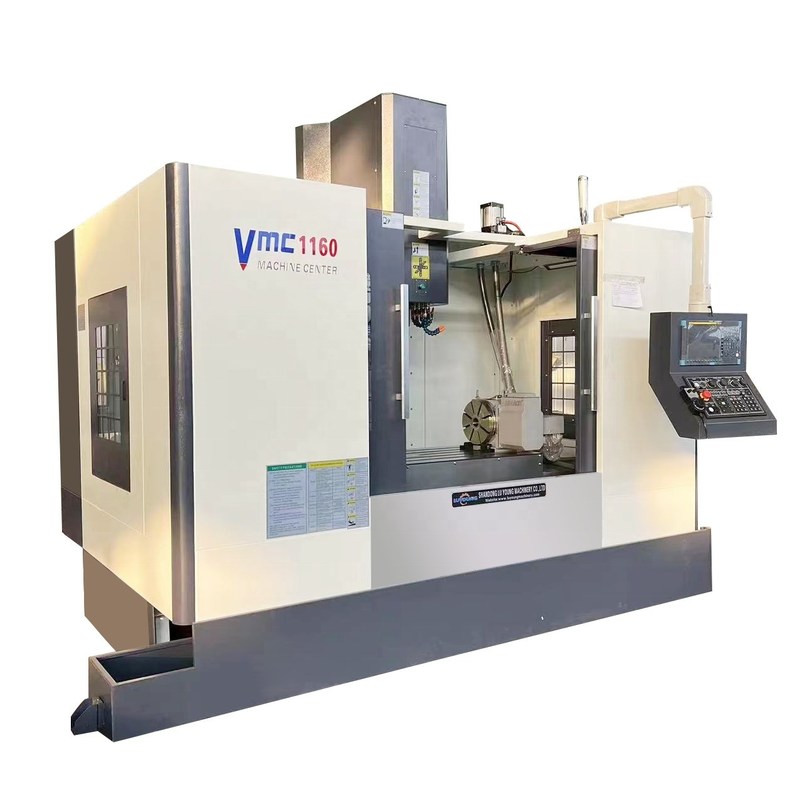

Vmc1160 Mitsubishi 3axis 4 Axis Cnc Vertical Millinmachine For Metal
|
Travel Of X Axis(mm):
|
1100
|
Travel Of Y Axis(mm):
|
600
|
Travel Of Z Axis(mm):
|
600
|
Max Speed Of Spindle (Rpm):
|
8000
|
Distance Of Spindle Head To Table:
|
130-780mm
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
Applicable Industries:
|
Machinery Repair Shops, Manufacturing Plant, Retail
|
Showroom Location:
|
None
|
Core Components:
|
Bearing
|
|
Condition:
|
New
|
|
Spindle Taper:
|
BT40
|
|
No. Of Spindles:
|
Single
|
|
Type:
|
VERTICAL
|
|
Weight (T):
|
7.3 T
|
|
Table Size (mm):
|
1200*600
|
|
CNC Control System:
|
GSK, FANUC, MITSUBISHI, KND, Siemens
|
|
Number Of Axes:
|
3, 4, 5
|
|
Table Travel (X) (mm):
|
1100
|
|
Table Travel (Y) (mm):
|
600
|
|
Table Travel (Z) (mm):
|
600
|
|
Positioning Accuracy (mm):
|
±0.005
|
|
Repeatability (X/Y/Z) (mm):
|
±0.003
|
|
Spindle Motor Power(kW):
|
11/15
|
|
Max. Table Load(kg):
|
650 Kg
|
|
Min. Time Of Tool Change(s):
|
2
|
|
Tool Magazine Capacity:
|
16, 20, 24
|
|
Key Selling Points:
|
Competitive Price
|
|
Warranty:
|
1 Year
|
|
Marketing Type:
|
Newest
|
|
Machinery Test Report:
|
Provided
|
|
Video Outgoing-inspection:
|
Provided
|
|
Warranty Of Core Components:
|
1 Year
|
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
|
CNC Or Not:
|
CNC
|
|
Product Type:
|
Vmc1160 Mitsubishi 3axis 4 Axis Cnc Vertical Millinmachine For Metal
|
|
Travel Of X Axis(mm):
|
1100
|
|
Travel Of Y Axis(mm):
|
600
|
|
Travel Of Z Axis(mm):
|
600
|
|
Max Speed Of Spindle (Rpm):
|
8000
|
|
Distance Of Spindle Head To Table:
|
130-780mm
|
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
|
Applicable Industries:
|
Machinery Repair Shops, Manufacturing Plant, Retail
|
|
Showroom Location:
|
None
|
|
Core Components:
|
Bearing
|
| Condition | New |
|---|---|
| Spindle Taper | BT40 |
| No. of Spindles | Single |
| Type | VERTICAL |
| Weight | 7.3 T |
| Table Size | 1200*600 mm |
| CNC Control System | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number of Axes | 3, 4, 5 |
| Table Travel (X/Y/Z) | 1100/600/600 mm |
| Positioning Accuracy | ±0.005 mm |
| Repeatability (X/Y/Z) | ±0.003 mm |
| Spindle Motor Power | 11/15 kW |
| Max. Table Load | 650 kg |
| Min. Time of Tool Change | 2 s |
| Tool Magazine Capacity | 16, 20, 24 |
| Warranty | 1 Year |
| Items | Details | Unit | VMC1160 |
|---|---|---|---|
| Table | Size | mm | 1200×600 |
| Travel of 3 axis (X/Y/Z) | mm | 1100/600/600 | |
| Max table load | kg | 1000 | |
| T-slot | Size | mm | 5-18×120 |
| Spindle | Spindle taper | BT40 | |
| Distance from Spindle center to Column guide | mm | 650 | |
| Distance of spindle head to table | mm | 130-780 | |
| Max speed | rpm | 8000 | |
| Motor power | KW | 11/15 |
