Product Details
Place of Origin: Shandong, China
Brand Name: Lu Young

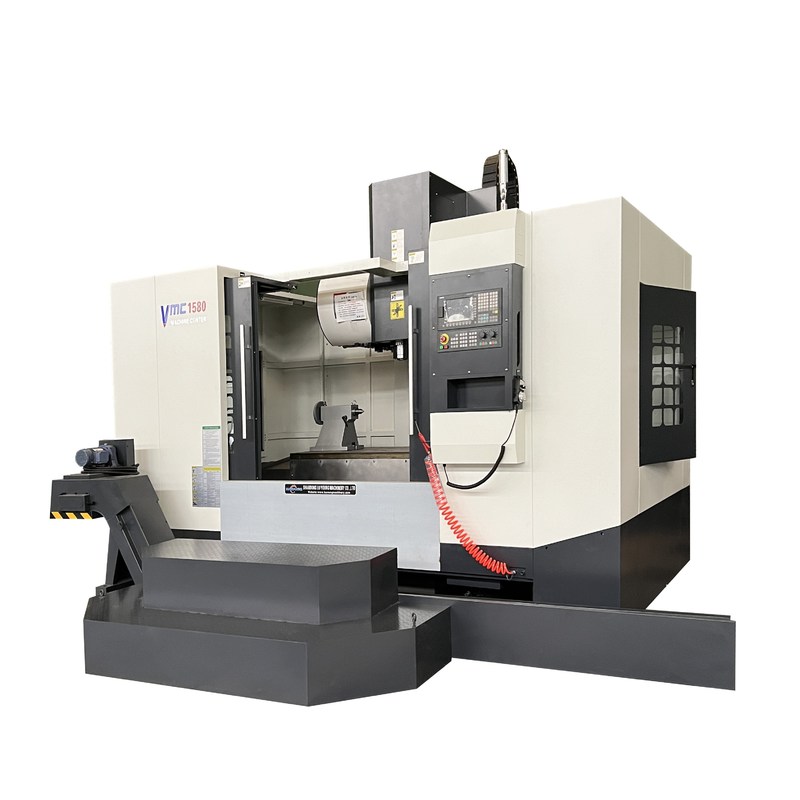

Model Number: VMC1580
Payment & Shipping Terms
Price: $35,000.00/sets 1-1 sets
|
Type:
|
VERTICAL
|
Range Of Spindle Speed(r.p.m):
|
1 - 8000
|
Number Of Axes:
|
4
|
No. Of Spindles:
|
Single
|
Machining Capacity:
|
Heavy Duty
|
Spindle Taper:
|
BT40
|
Table Travel (X) (mm):
|
1700
|
Table Travel (Y) (mm):
|
800
|
Table Travel (Z) (mm):
|
700
|
Positioning Accuracy (mm):
|
±0.01
|
Repeatability (X/Y/Z) (mm):
|
±0.005
|
Voltage:
|
220v/380v
|
Dimension(L*W*H):
|
4300*3200*3100
|
CNC Control System:
|
GSK
|
Key Selling Points:
|
High Safety Level
|
Weight (KG):
|
13000
|
Warranty:
|
1 Year
|
Max. Table Load(kg):
|
1500 Kg
|
Marketing Type:
|
New Product 2024
|
Machinery Test Report:
|
Provided
|
Video Outgoing-inspection:
|
Provided
|
Warranty Of Core Components:
|
1 Year
|
CNC Or Not:
|
CNC
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
Machine Type:
|
Machining Center
|
Precision:
|
High Precision Machine
|
Table Size (mm):
|
1700*800
|
Travel Of X Axis(mm):
|
1500
|
Travel Of Y Axis(mm):
|
800
|
Travel Of Z Axis(mm):
|
700
|
Max, Table Load:
|
1500kg
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
|
Type:
|
VERTICAL
|
|
Range Of Spindle Speed(r.p.m):
|
1 - 8000
|
|
Number Of Axes:
|
4
|
|
No. Of Spindles:
|
Single
|
|
Machining Capacity:
|
Heavy Duty
|
|
Spindle Taper:
|
BT40
|
|
Table Travel (X) (mm):
|
1700
|
|
Table Travel (Y) (mm):
|
800
|
|
Table Travel (Z) (mm):
|
700
|
|
Positioning Accuracy (mm):
|
±0.01
|
|
Repeatability (X/Y/Z) (mm):
|
±0.005
|
|
Voltage:
|
220v/380v
|
|
Dimension(L*W*H):
|
4300*3200*3100
|
|
CNC Control System:
|
GSK
|
|
Key Selling Points:
|
High Safety Level
|
|
Weight (KG):
|
13000
|
|
Warranty:
|
1 Year
|
|
Max. Table Load(kg):
|
1500 Kg
|
|
Marketing Type:
|
New Product 2024
|
|
Machinery Test Report:
|
Provided
|
|
Video Outgoing-inspection:
|
Provided
|
|
Warranty Of Core Components:
|
1 Year
|
|
CNC Or Not:
|
CNC
|
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
|
Machine Type:
|
Machining Center
|
|
Precision:
|
High Precision Machine
|
|
Table Size (mm):
|
1700*800
|
|
Travel Of X Axis(mm):
|
1500
|
|
Travel Of Y Axis(mm):
|
800
|
|
Travel Of Z Axis(mm):
|
700
|
|
Max, Table Load:
|
1500kg
|
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
| Attribute | Specification |
|---|---|
| Type | VERTICAL |
| Range of Spindle Speed | 1 - 8000 r.p.m |
| Number of Axes | 4 |
| Table Travel (X/Y/Z) | 1700/800/700 mm |
| Positioning Accuracy | ±0.01 mm |
| Repeatability | ±0.005 mm |
| Spindle Taper | BT40 |
| Max. Table Load | 1500 kg |
| Overall Dimensions | 4300×3200×3100 mm |
| Weight | 13000 kg |
