Product Details
Place of Origin: Shandong, China
Brand Name: lu young
Payment & Shipping Terms
Price: $63,000.00/sets 1-1 sets
|
Condition:
|
New
|
No. Of Spindles:
|
Single
|
Type:
|
Horizontal
|
Weight (T):
|
8 T
|
Table Size (mm):
|
500*500
|
CNC Control System:
|
GSK, FANUC, KND
|
Number Of Axes:
|
3, 4, 5
|
Table Travel (X) (mm):
|
800
|
Table Travel (Y) (mm):
|
520
|
Table Travel (Z) (mm):
|
700
|
Positioning Accuracy (mm):
|
0.008
|
Repeatability (X/Y/Z) (mm):
|
0.005
|
Spindle Motor Power(kW):
|
7.5/11
|
Max. Table Load(kg):
|
600 Kg
|
Min. Time Of Tool Change(s):
|
6
|
Tool Magazine Capacity:
|
16, 20, 24
|
Key Selling Points:
|
Automatic
|
Warranty:
|
1 Year
|
Voltage:
|
220V/380V
|
Marketing Type:
|
New Product 2020
|
Machinery Test Report:
|
Provided
|
Video Outgoing-inspection:
|
Provided
|
Warranty Of Core Components:
|
1 Year
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
Machine Type:
|
Horizontal Machine Centers
|
Product Name:
|
High Quality Specification Horizontal Cnc Milling Machine
|
Controlling Mode:
|
Cnc System
|
Product Type:
|
Cnc Machining Center
|
Processing:
|
Maching Center
|
Spindle Speed:
|
8000 Rpm
|
Application:
|
Metal Machining
|
Control System:
|
KND SIEMENS GSK FANUC (optional)
|
After Warranty Service:
|
Online Support
|
Applicable Industries:
|
Machinery Repair Shops, Manufacturing Plant, Construction Works
|
Showroom Location:
|
None
|
Core Components:
|
Other
|
|
Condition:
|
New
|
|
No. Of Spindles:
|
Single
|
|
Type:
|
Horizontal
|
|
Weight (T):
|
8 T
|
|
Table Size (mm):
|
500*500
|
|
CNC Control System:
|
GSK, FANUC, KND
|
|
Number Of Axes:
|
3, 4, 5
|
|
Table Travel (X) (mm):
|
800
|
|
Table Travel (Y) (mm):
|
520
|
|
Table Travel (Z) (mm):
|
700
|
|
Positioning Accuracy (mm):
|
0.008
|
|
Repeatability (X/Y/Z) (mm):
|
0.005
|
|
Spindle Motor Power(kW):
|
7.5/11
|
|
Max. Table Load(kg):
|
600 Kg
|
|
Min. Time Of Tool Change(s):
|
6
|
|
Tool Magazine Capacity:
|
16, 20, 24
|
|
Key Selling Points:
|
Automatic
|
|
Warranty:
|
1 Year
|
|
Voltage:
|
220V/380V
|
|
Marketing Type:
|
New Product 2020
|
|
Machinery Test Report:
|
Provided
|
|
Video Outgoing-inspection:
|
Provided
|
|
Warranty Of Core Components:
|
1 Year
|
|
After-sales Service Provided:
|
Engineers Available To Service Machinery Overseas
|
|
Machine Type:
|
Horizontal Machine Centers
|
|
Product Name:
|
High Quality Specification Horizontal Cnc Milling Machine
|
|
Controlling Mode:
|
Cnc System
|
|
Product Type:
|
Cnc Machining Center
|
|
Processing:
|
Maching Center
|
|
Spindle Speed:
|
8000 Rpm
|
|
Application:
|
Metal Machining
|
|
Control System:
|
KND SIEMENS GSK FANUC (optional)
|
|
After Warranty Service:
|
Online Support
|
|
Applicable Industries:
|
Machinery Repair Shops, Manufacturing Plant, Construction Works
|
|
Showroom Location:
|
None
|
|
Core Components:
|
Other
|

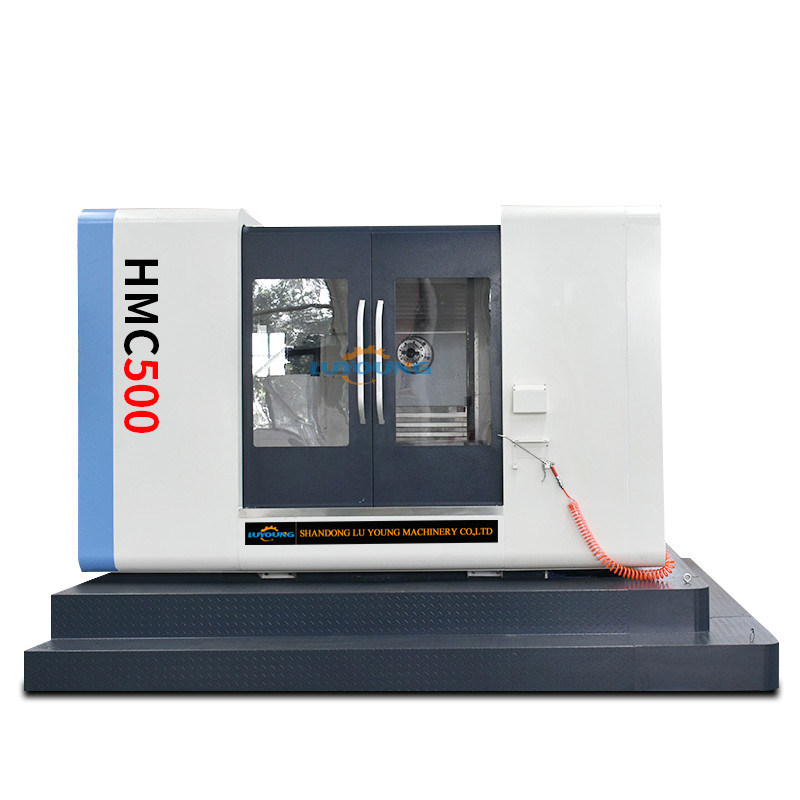

The HMC500 High Quality Horizontal CNC Milling Machine features a 7.5/11kW spindle motor power and 800mm table travel. Ideal for processing castings, steel parts, stainless steel, copper, and aluminum components. Designed for polyhedron machining with one-time clamping and multi-faceted processing capabilities.
| Condition | New |
|---|---|
| Type | Horizontal |
| Weight | 8 T |
| Table Size | 500×500 mm |
| CNC Control System | GSK, FANUC, KND |
| Number of Axes | 3, 4, 5 |
| Table Travel (X/Y/Z) | 800/520/700 mm |
| Positioning Accuracy | 0.008 mm |
| Repeatability (X/Y/Z) | 0.005 mm |
| Spindle Motor Power | 7.5/11 kW |
| Max. Table Load | 600 kg |
| Tool Change Time | 6 s |
| Tool Magazine Capacity | 16, 20, 24 |
| Warranty | 1 Year |
| Specifications | HMC500 | HMC630 |
|---|---|---|
| Worktable size (mm) | 500×500 | 630×630 |
| Max loading weight (kg) | 600 | 950 |
| X axis travel (mm) | 800 | 1050 |
| Y axis travel (mm) | 520 | 750 |
| Z axis travel (mm) | 700 | 900 |
| Spindle speed (r/min) | 8000 | 6000 |
| Motor power (kW) | 15 | 15 |
| Tool change time (s) | 2.5 | 2.5 |
| Machine weight (kg) | 8000 | 10000 |
Luyang CNC Machinery has 20 years of experience in producing CNC lathes, milling machines, and machining centers. With a professional production team and strong after-sales support, we provide cost-effective CNC machine tools with excellent service.
Standard export plywood boxes ensure product safety during sea transportation. Custom packaging options available upon request.
Our warranty period is one year, including free repairs during warranty. Standard parts and accessories are supplied with machines.
We use durable plywood boxes that protect against damage during transit while being cost-effective.
Standard delivery time is 30 days.
Yes, we can design and produce machines to meet your specific requirements based on your drawings.
Available by phone, email, or QQ for immediate assistance.
