Product Details
Place of Origin: CHINA
Brand Name: luyoung
Certification: CE
Model Number: vmc1370
Payment & Shipping Terms
Minimum Order Quantity: 1/SET
Price: USD$49000-$60000
Packaging Details: Non-fumigating wooden cases
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 10/SET
|
Year:
|
2024
|
Power Requirement:
|
380V, 3-phase
|
Application:
|
Cnc Milling Machine
|
Vertical Stroke:
|
1000mm
|
Keyword:
|
Cnc Milling Machine
|
Machinery Test Report:
|
Provided
|
Items:
|
BT40-BT50
|
Z Motor Torque:
|
7.7N.m
|
Spindle Speed:
|
8000/10000/12000rpm
|
ATC:
|
24 Atc
|
Axis:
|
4th
|
|
Year:
|
2024
|
|
Power Requirement:
|
380V, 3-phase
|
|
Application:
|
Cnc Milling Machine
|
|
Vertical Stroke:
|
1000mm
|
|
Keyword:
|
Cnc Milling Machine
|
|
Machinery Test Report:
|
Provided
|
|
Items:
|
BT40-BT50
|
|
Z Motor Torque:
|
7.7N.m
|
|
Spindle Speed:
|
8000/10000/12000rpm
|
|
ATC:
|
24 Atc
|
|
Axis:
|
4th
|

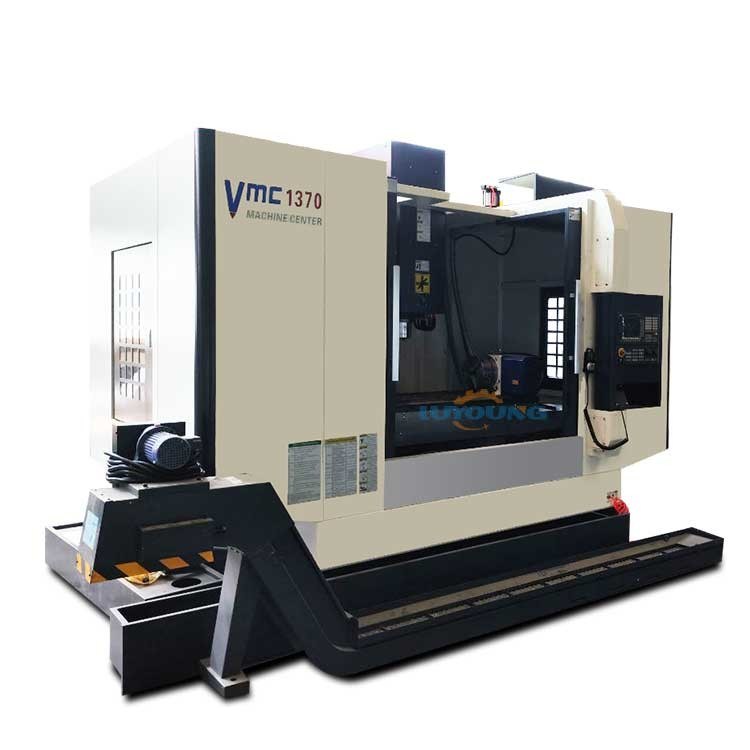

The VMC1370 CNC Milling Machine is a high-performance 3/4/5 axis vertical machining center designed for precision manufacturing applications. With its powerful 7.7N.m Z motor torque and spindle speeds up to 12000rpm, this machine delivers exceptional performance for heavy-duty cutting tasks across various industries.
| Year | 2024 |
| Power Requirement | 380V, 3-phase |
| Vertical Stroke | 1000mm |
| Z Motor Torque | 7.7N.m |
| Spindle Speed | 8000/10000/12000rpm |
| ATC | 24 atc |
| Axis | 4th |
| Items | BT40-BT50 |
| Item | VMC850 | VMC1160 | VMC1270 | VMC1370 |
|---|---|---|---|---|
| Worktable size (length×width)mm | 1000×500 | 1100×600 | 1200×700 | 1300×700 |
| Max loading weight | 600kg | 650kg | 1000kg | 1400kg |
| X-Axis travel(mm) | 800 | 1000 | 1200 | 1300 |
| Y-Axis travel(mm) | 500 | 600 | 700 | 700 |
| Z-Axis travel(mm) | 500 | 600 | 700 | 700 |
| Spindle motor power | 7.5/11kw | 11/15kw | 11/15kw | 15/18.5kw |
| Positional accuracy | ±0.005 mm | ±0.005 mm | ±0.005 mm | ±0.0075 mm |
| Machine weight | 5500KG | 7500KG | 9000KG | 10000KG |
The VMC1370 CNC milling machine is ideal for precision machining applications in various industries including:
