Product Details
Place of Origin: CHINA
Brand Name: luyoung
Certification: ISO, CE

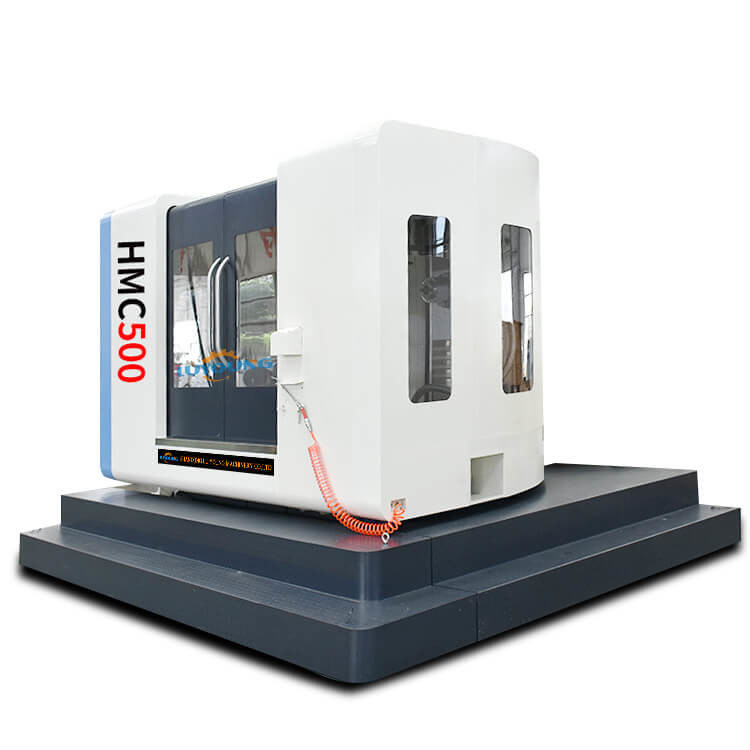

Model Number: HMC500
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: plywood box
Delivery Time: 30 days
Payment Terms: 30% T/T as deposit, the balance will be paid before shipment.
Supply Ability: 100sets per month
|
Machine Color:
|
As Your Requirement
|
Condition:
|
New
|
Items:
|
BT40-BT50
|
Power Requirement:
|
380V, 3-phase
|
Color:
|
Customized According To Customer Requirements
|
Table Size:
|
500*500mm
|
Port:
|
Qingdao,Ningbo Or Shanghai Port
|
Machinery Test Report:
|
Provided
|
X Axis Travel:
|
800mm
|
Y Axis Travel:
|
520mm
|
Z Axis Travel:
|
700mm
|
Motor Power:
|
15kw
|
Spindle Taper:
|
BT 40 φ150
|
Spindle Speed:
|
8000rpm
|
Positioning Accuracy:
|
±0.008
|
Repeat Positional Accuracy:
|
±0.005
|
|
Machine Color:
|
As Your Requirement
|
|
Condition:
|
New
|
|
Items:
|
BT40-BT50
|
|
Power Requirement:
|
380V, 3-phase
|
|
Color:
|
Customized According To Customer Requirements
|
|
Table Size:
|
500*500mm
|
|
Port:
|
Qingdao,Ningbo Or Shanghai Port
|
|
Machinery Test Report:
|
Provided
|
|
X Axis Travel:
|
800mm
|
|
Y Axis Travel:
|
520mm
|
|
Z Axis Travel:
|
700mm
|
|
Motor Power:
|
15kw
|
|
Spindle Taper:
|
BT 40 φ150
|
|
Spindle Speed:
|
8000rpm
|
|
Positioning Accuracy:
|
±0.008
|
|
Repeat Positional Accuracy:
|
±0.005
|
| Specification | Value | Unit |
|---|---|---|
| Worktable Size | 500×500 | mm |
| Max Loading Weight | 600 | kg |
| X-axis Travel | 800 | mm |
| Y-axis Travel | 520 | mm |
| Z-axis Travel | 700 | mm |
| Spindle Speed | 8000 | rpm |
| Motor Power | 15 | kW |
| Positioning Accuracy | ±0.008 | mm |
| Repeat Positional Accuracy | ±0.005 | mm |
| Machine Dimensions | 4800×3600×2800 | mm |
| Machine Weight | 8000 | kg |
Bed Body: Integral positive T-shaped castings with finite element analyzed structure for optimal rigidity and precision retention.
Column: Dynamic column structure with internal rib plate analyzed for structural integrity.
Spindle Box: Finite element analyzed design with reinforced ribs for maximum rigidity.
Worktable: Dual switching workbench with APC lift construction for fast, reliable operation (12.5 second exchange time).
The CNC milling machine is securely packaged in a custom wooden crate designed to withstand transportation impacts. All components are carefully packed and labeled for safe transit. Shipping is handled by specialized freight carriers with tracking provided.
