Product Details
Place of Origin: China
Brand Name: Lu Young

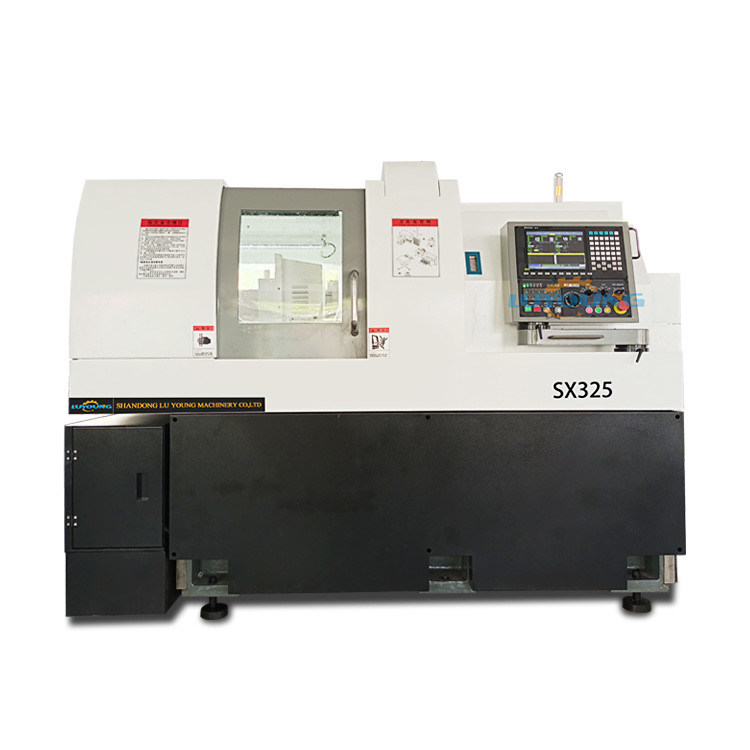

Model Number: sm325
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $25000-$50000
Packaging Details: Plywood box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month
|
Stroke:
|
280mm
|
Category:
|
Swiss Type Cnc Lathe Machine
|
Max Maching Diameter:
|
32mm
|
Sub Spindle Motor:
|
1.5/2.2
|
Spindle Motor:
|
5.5/7.5
|
Controller System:
|
Fanuc Or Syntec
|
Main/Sub Spindle CS Axis Indexing Minimum Unit:
|
1/1000（0.001）°
|
X1/Z1 Axis Rapid Traverse Rate:
|
24 M/min
|
Back End Tools:
|
4 Axis(fixed)
|
Power Tool Chuck Specifications:
|
ER16
|
|
Stroke:
|
280mm
|
|
Category:
|
Swiss Type Cnc Lathe Machine
|
|
Max Maching Diameter:
|
32mm
|
|
Sub Spindle Motor:
|
1.5/2.2
|
|
Spindle Motor:
|
5.5/7.5
|
|
Controller System:
|
Fanuc Or Syntec
|
|
Main/Sub Spindle CS Axis Indexing Minimum Unit:
|
1/1000（0.001）°
|
|
X1/Z1 Axis Rapid Traverse Rate:
|
24 M/min
|
|
Back End Tools:
|
4 Axis(fixed)
|
|
Power Tool Chuck Specifications:
|
ER16
|
| Stroke | 280mm |
| Category | Swiss Type CNC Lathe Machine |
| Max machining diameter | 32mm |
| Sub Spindle motor | 1.5/2.2 |
| Spindle motor | 5.5/7.5 |
| Controller system | Fanuc or Syntec |
Our perfect entry-level model for the highly flexible manufacture of complex parts. Simultaneous machining up to 3 tools for maximum productivity and efficiency.
| Processing Capacity | ||
|---|---|---|
| Max machining diameter | mm | ￠32 |
| Stroke | mm | 280 |
| Main Spindle RPM | rpm | 8000 |
| Sub Spindle RPM | rpm | 8000 |
| Cross Driven Tools RPM | rpm | 5000 |
| Main/Sub Spindle CS axis indexing minimum unit | ° | 1/1000(0.001) |
| Rapid Traverse Rate | ||
|---|---|---|
| X1/Z1 axis | m/min | 24 |
| Y/X2/Z2 axis | m/min | 32 |
| Arrangement of Tools | ||
|---|---|---|
| O.D Tools | ea | 6 |
| Front Work Tools | ea | 5 |
| Cross Driven Tools | ea | 4 |
| Back end tools 4 axis (fixed) | ea | 4 (fixed) |
