Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

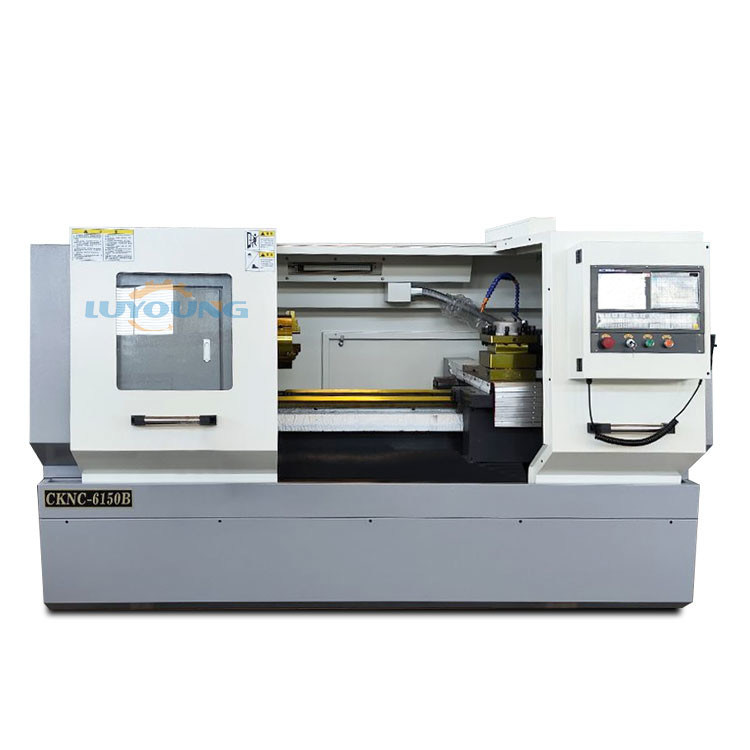

Model Number: ck6150
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 7500-20000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets
|
Max. Swing Dia. Over Bed:
|
500mm
|
Max. Swing Dia. Over Cross Slide:
|
280mm
|
Processing Length:
|
750mm/1000mm/1500mm
|
Width Of The Bed:
|
400mm
|
Dia. Of Spindle:
|
82mm
|
Spindle Taper:
|
1:20/90
|
Spindle Nose:
|
Type Of Spindle Head D-8
|
Spindle Speed:
|
15-1500rpm
|
Chuck Size:
|
6/8/10
|
Tool Holder:
|
4
|
Tool Bar Section:
|
25x25mm
|
Main Motor Power:
|
7.5KW
|
X/Z Axis Position Accuracy:
|
0.02/0.025mm
|
X/Z Axis Repeatability:
|
0.01/0.012mm
|
X/Z Axis Travel:
|
360/750mm/1000mm/1500mm
|
X/Z Axis Fast Feeding Speed:
|
8/10 M/MIN
|
Tailstock Sleeve Travel:
|
150mm
|
Tailstock Taper:
|
MT-5
|
Dimension:
|
2410/2660/3160*1560*1730mm
|
Weight:
|
2800/3200/3500kg
|
|
Max. Swing Dia. Over Bed:
|
500mm
|
|
Max. Swing Dia. Over Cross Slide:
|
280mm
|
|
Processing Length:
|
750mm/1000mm/1500mm
|
|
Width Of The Bed:
|
400mm
|
|
Dia. Of Spindle:
|
82mm
|
|
Spindle Taper:
|
1:20/90
|
|
Spindle Nose:
|
Type Of Spindle Head D-8
|
|
Spindle Speed:
|
15-1500rpm
|
|
Chuck Size:
|
6/8/10
|
|
Tool Holder:
|
4
|
|
Tool Bar Section:
|
25x25mm
|
|
Main Motor Power:
|
7.5KW
|
|
X/Z Axis Position Accuracy:
|
0.02/0.025mm
|
|
X/Z Axis Repeatability:
|
0.01/0.012mm
|
|
X/Z Axis Travel:
|
360/750mm/1000mm/1500mm
|
|
X/Z Axis Fast Feeding Speed:
|
8/10 M/MIN
|
|
Tailstock Sleeve Travel:
|
150mm
|
|
Tailstock Taper:
|
MT-5
|
|
Dimension:
|
2410/2660/3160*1560*1730mm
|
|
Weight:
|
2800/3200/3500kg
|
| Specification | Value |
|---|---|
| Max. swing diameter over bed | 500mm |
| Max. swing diameter over cross slide | 280mm |
| Processing length | 750mm/1000mm/1500mm |
| Width of the bed | 400mm |
| Diameter of spindle | 82mm |
| Spindle taper | 1:20/90 |
| Spindle nose | Type of spindle head D-8 |
| Spindle speed | 15-1500rpm |
| Chuck size | 6/8/10" |
| Tool holder | 4 station |
| Tool bar section | 25x25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis travel | 360/750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT-5 |
| Dimension | 2410/2660/3160*1560*1730mm |
| Weight | 2800/3200/3500kg |
