Product Details
Place of Origin: SHANDONG
Brand Name: cnc lathe machine
Certification: CE
Model Number: CK6160
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD15700-USD22800
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Number Of Axes:
|
2
|
Tool Post Stations:
|
6, 4,8
|
Cnc Control:
|
GSK Or FANUC、Siemens, Syntec
|
Tailstock Shaft Diameter:
|
95mm
|
Positioning Accuracy:
|
0.01
|
Coolant System:
|
Yes
|
Cnc Or Not:
|
Cnc
|
Through Bar Diameter:
|
Ø82
|
Tailstock Taper:
|
MT-5
|
|
Number Of Axes:
|
2
|
|
Tool Post Stations:
|
6, 4,8
|
|
Cnc Control:
|
GSK Or FANUC、Siemens, Syntec
|
|
Tailstock Shaft Diameter:
|
95mm
|
|
Positioning Accuracy:
|
0.01
|
|
Coolant System:
|
Yes
|
|
Cnc Or Not:
|
Cnc
|
|
Through Bar Diameter:
|
Ø82
|
|
Tailstock Taper:
|
MT-5
|

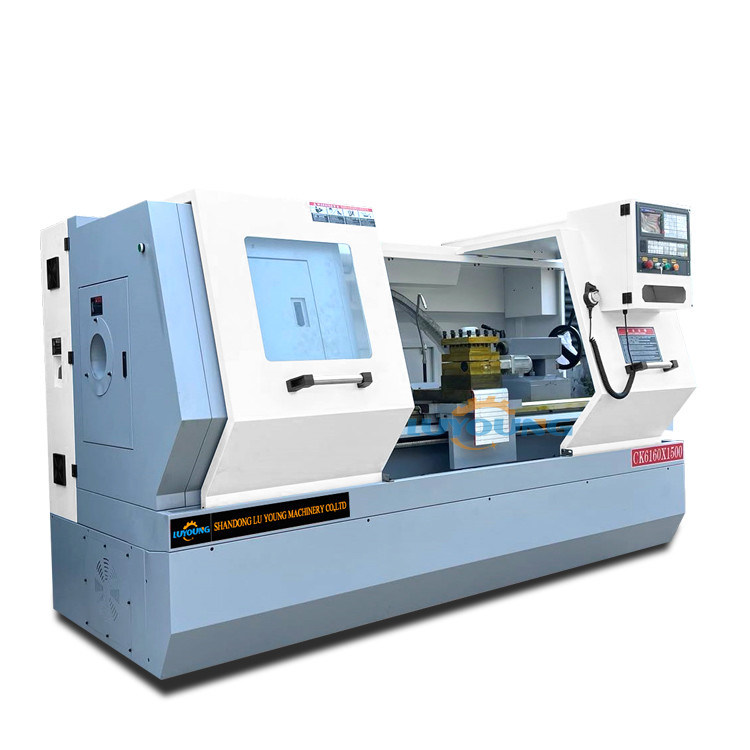

The CK6160x1500 Flat Bed CNC Lathe Machine features a coolant system for consistent temperature control during extended operation, ensuring precise machining. With a through bar diameter of Ø82 (optional Ø130), it accommodates a wide range of part sizes.
Designed for precision applications in aerospace, medical, and automotive industries, this machine delivers tight tolerances and complex geometries. Its user-friendly interface and comprehensive safety features make it suitable for both experienced operators and high-speed operations.
| Attribute | Value |
|---|---|
| Number of Axes | 2 |
| Tool Post Stations | 6, 4, 8 |
| CNC Control | GSK, FANUC, Siemens, Syntec |
| Tailstock Shaft Diameter | 95mm |
| Positioning Accuracy | 0.01 |
| Coolant System | Yes |
| Through Bar Diameter | Ø82 |
| Tailstock Taper | MT-5 |
| Item | CK6160 |
|---|---|
| Max. swing dia. over bed | 600mm |
| Max. swing dia. over cross slide | 300mm |
| Processing length | 750mm/1000mm/1500mm/2000mm |
| Width of the bed | 400mm |
| Dia. of spindle | 82mm |
| Spindle taper | 1:20/90 |
| Spindle nose | Type of spindle head D-8 |
| Spindle speed | 30-150,100-500/320-1600rpm |
| Spindle speed step | Three gear speed manual change frequency conversion |
| Chuck size | 250mm |
| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis travel | 360/750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |
| Dimension | 2410/2660/3160*1560*1730mm |
| Weight | 2800/3200/3500kg |
This machine is part of our CNC lathe machine product line.
The model number is CK6160.
Manufactured in SHANDONG, China.
600mm over bed, 300mm over cross slide.
1600 RPM (320-1600rpm range).
