Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: VTC5060/ VTC7080(L) VTC9010(L) VTC1200(L)VTC1600
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD31000-40000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Voltage:
|
380v 3 Phase
|
Automatic Grade:
|
Printed
|
Condition:
|
New
|
Cnc Or Not:
|
Normal
|
Type:
|
Horizontal
|
Maximum Turning Diameter:
|
600mm
|
The Z Axis Stroke:
|
700mm
|
Spindle Speed:
|
80-2000
|
|
Voltage:
|
380v 3 Phase
|
|
Automatic Grade:
|
Printed
|
|
Condition:
|
New
|
|
Cnc Or Not:
|
Normal
|
|
Type:
|
Horizontal
|
|
Maximum Turning Diameter:
|
600mm
|
|
The Z Axis Stroke:
|
700mm
|
|
Spindle Speed:
|
80-2000
|

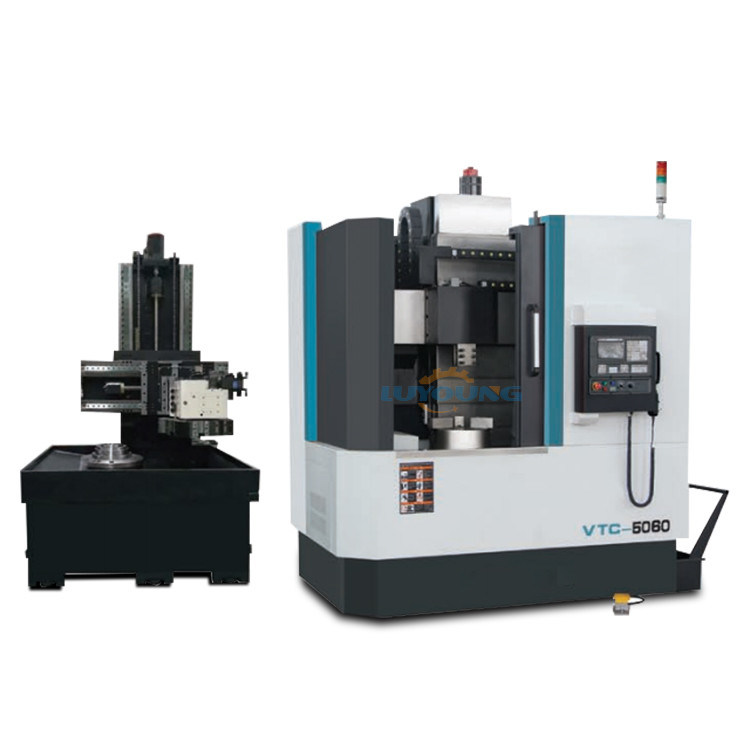

High-performance vertical CNC lathe machines including models VTC5060, VTC7080L, VTC9010L, VTC1200L, and VTC1600 designed for precision machining of large and heavy workpieces.
| Attribute | Value |
|---|---|
| Voltage | 380v 3 phase |
| Automatic grade | Printed |
| Condition | New |
| CNC or not | Normal |
| Type | Horizontal |
| Maximum turning diameter | 600mm |
| The Z axis stroke | 700mm |
| Spindle Speed | 80-2000 |
| Specifications | VTC5060(L) | VTC7080(L) | VTC9010(L) | VTC1200(L) | VTC1600 |
|---|---|---|---|---|---|
| Maximum turning diameter (mm) | 600 | 800 | 1000 | 1200 | 1600 |
| Maximum cutting length (mm) | 500 | 700 | 700 | 800 | 1000 |
| Maximum cutting diameter (mm) | 500 | 700 | 900 | 1200 | 1600 |
| The X axis stroke (mm) | 150 | 200 | 250 | 380 | -100,+1125 |
| The Z axis stroke (mm) | 700 | 700 | 700 | 800 | 900 |
| Spindle Speed (r/min) | 80-2000 | 80-1500 | 80-1200 | 80-1200 | |
| Output power of main motor (kw) | 15 | 15/18.5 | 18.5/22 | 22/30 | 37/45 |
| Electrical capacity (KVA) | 16 | 18 | 22 | 24 | 65 |
| Weight of the machine (T) | 6.2 | 7.5 | 13 | 15 | 24 |
