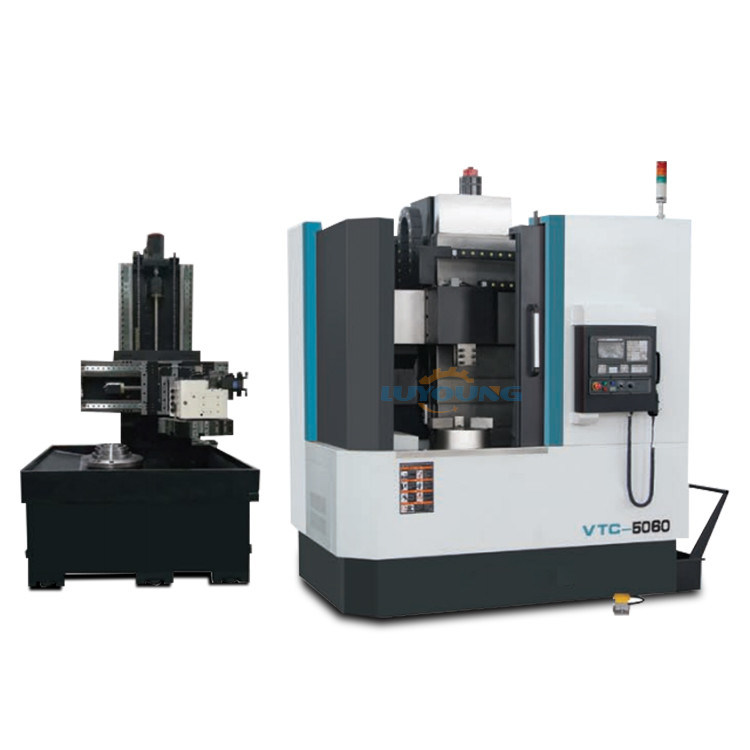

Vertical Cnc Lathe Machine VTC5060 For Versatile Applications

Name: Vertical Cnc Lathe Machine VTC5060 For Versatile Applications
Brand: shandong lu young machinery co.,ltd
SKU: VTC5060
Price: 35,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Luyoung

Certification: CE

Model Number: VTC5060

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD31000-40000

Packaging Details: non-fumigation wooden box

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 100sets

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    VTC5060 cnc lathe, Vertical cnc lathe machine, VTC5060 cnc lathe machine


Voltage:	380v 3 Phase	Automatic Grade:	Printed
Condition:	New	Cnc Or Not:	Normal
Type:	Horizontal	Maximum Turning Diameter:	600mm
The Z Axis Stroke:	700mm	Spindle Speed:	80-2000

Voltage:	380v 3 Phase
Automatic Grade:	Printed
Condition:	New
Cnc Or Not:	Normal
Type:	Horizontal
Maximum Turning Diameter:	600mm
The Z Axis Stroke:	700mm
Spindle Speed:	80-2000

Vertical Cnc Lathe Machine VTC5060 For Versatile Applications

Vertical CNC Lathe Machine VTC5060 For Versatile Applications

Key Attributes

Voltage: 380v 3 phase

Automatic grade: Printed

Condition: New

CNC or not: Normal

Type: Horizontal

Maximum turning diameter: 600mm

The Z axis stroke: 700mm

Spindle Speed: 80-2000

Technical Specifications

Specification	VTC5060(L)	VTC7080(L)	VTC9010(L)	VTC1200(L)	VTC1600
Maximum turning diameter (mm)	600	800	1000	1200	1600
Maximum cutting length (mm)	500	700	700	800	1000
Maximum cutting diameter (mm)	500	700	900	1200	1600
The X axis stroke (mm)	150	200	250	380	-100,+1125
The Z axis stroke (mm)	700	700	700	800	900
Spindle Speed (r/min)	80-2000	80-1500	80-1200	80-1200

Main Features

Vertical Spindle Orientation: Designed with vertical spindle orientation for easy clamping and alignment of workpieces
Ideal for Short and Wide Workpieces: Perfect for machining discs, wheels, and complex-shaped components with various surface requirements
High Load Capacity: Superior rigidity for handling large and super-heavy parts with direct workpiece support
Precision Machining: Achieves IT9-IT8 precision with surface roughness between Ra 3.2 to 1.6 micrometers
Versatile Applications: Suitable for industries with demanding machining requirements

This vertical CNC lathe is engineered for precision machining of large and heavy workpieces. Its robust construction and advanced features make it an ideal solution for industrial applications requiring high accuracy and reliability.
