Name: 2 Axis CNC Pipe Threading Machine For Precise Metal Machining
Brand: shandong lu young machinery co.,ltd
SKU: Q1327
Price: 35,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Luyoung

Certification: CE

Model Number: Q1327

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD31000-40000

Packaging Details: non-fumigation wooden box

Delivery Time: 45 working days

Payment Terms: T/T

Supply Ability: 100sets

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            2-Axis CNC Pipe Threading Machine, Precise CNC Pipe Threading Machine


Key Words:	Flat Bed CNC Lathe Machine	Usage:	High Precision CNC Lathe
Pipe Threading Range:	320	Chuck:	φ630/3-jaw Manual
Positioning Accuracy:	0.01mm	Centers Distance:	1500mm
Machine Type:	Flat Bed CNC Lathe Machine	Turret Type:	6-station
Max Cutting Length:	1500MM	Number Of Axes:	2
Power:	11KW	Function:	Metal Machining
Spindle Speed:	1500-2000rpm	Through Spindle Hole:	280-320mm
Weight:	7000kg

Key Words:	Flat Bed CNC Lathe Machine
Usage:	High Precision CNC Lathe
Pipe Threading Range:	320
Chuck:	φ630/3-jaw Manual
Positioning Accuracy:	0.01mm
Centers Distance:	1500mm
Machine Type:	Flat Bed CNC Lathe Machine
Turret Type:	6-station
Max Cutting Length:	1500MM
Number Of Axes:	2
Power:	11KW
Function:	Metal Machining
Spindle Speed:	1500-2000rpm
Through Spindle Hole:	280-320mm
Weight:	7000kg

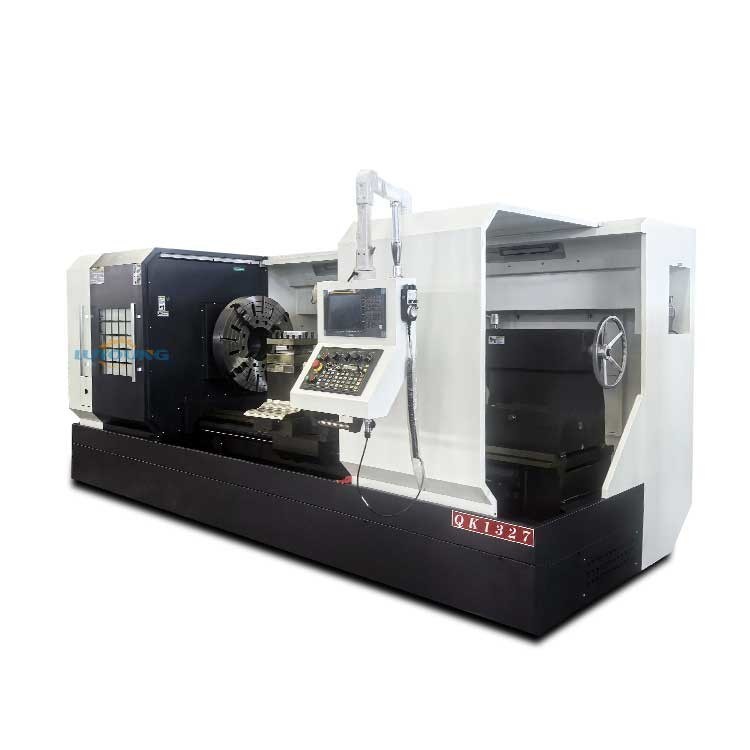

2 Axis CNC Pipe Threading Machine For Precise Metal Machining

A specialized CNC pipe thread lathe designed for processing internal and external threads on tubular workpieces with high precision and reliability.

Key Specifications

Attribute	Value
Pipe threading range	320 mm
Chuck	φ630/3-jaw manual
Positioning Accuracy	0.01mm
Centers Distance	1500mm
Turret Type	6-station
Max Cutting Length	1500MM
Power	11KW
Spindle Speed	1500-2000rpm
Through Spindle Hole	280-320mm
Weight	7000kg

Technical Specifications

Specification	Units	QK1327
Swing over bed	mm	800
Swing over cross slide	mm	480
Distance between centers	mm	1000/1500/3000
Pipe threading range	mm	130-270
Guideway width	mm	600
Max. load capacity	T	4
Spindle bore	mm	280
Spindle speed range	rpm	20-420
Chuck	mm	φ800 4-jaw manual
Turret/tool post	-	CNC turret 4 position
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Main spindle motor	kW	15

Key Features

Compact structure with robust design for industrial applications
High-torque spindle with excellent rigidity and precision retention
Capable of processing straight lines, arcs, and various thread types
Hardened guide rails for superior wear resistance and accuracy
Precision-balanced spindle assembly for smooth operation
Optimized chip removal and low center of gravity design
Ideal for complex, high-precision turning operations

Applications

Widely used in petroleum, chemical engineering, mining, and other industrial sectors requiring precision pipe threading and metal machining.
