Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

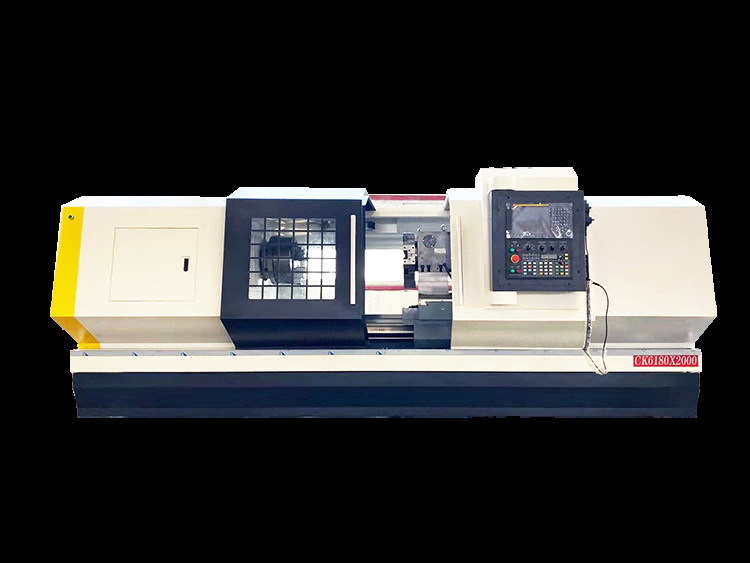

Model Number: CK6180
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD20000- USD43900
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Max. Swing Over Bed (mm):
|
800mm
|
Max. Swing Dia. Over Cross Slide(mm):
|
500mm
|
The Spindle Terminal Structure:
|
C11
|
Max.processing Length(mm):
|
1000/1500/2000/2500
|
Number Of Spindle Speed:
|
No Grade
|
Diameter Of Spindle Bore (mm):
|
φ105
|
The Taper Of Spindle Front-end:
|
(Metric)120 1:20
|
Tool Holder:
|
4/6/8 Electrical Tool Holder
|
Spindle Speed:
|
25-850rpm
|
|
Max. Swing Over Bed (mm):
|
800mm
|
|
Max. Swing Dia. Over Cross Slide(mm):
|
500mm
|
|
The Spindle Terminal Structure:
|
C11
|
|
Max.processing Length(mm):
|
1000/1500/2000/2500
|
|
Number Of Spindle Speed:
|
No Grade
|
|
Diameter Of Spindle Bore (mm):
|
φ105
|
|
The Taper Of Spindle Front-end:
|
(Metric)120 1:20
|
|
Tool Holder:
|
4/6/8 Electrical Tool Holder
|
|
Spindle Speed:
|
25-850rpm
|
| Max. swing over bed | 800mm |
| Max. swing dia. over cross slide | 500mm |
| The spindle terminal structure | C11 |
| Max. processing length | 1000/1500/2000/2500mm |
| Number of spindle speed | No grade |
| Diameter of spindle bore | φ105 |
| The taper of spindle front-end | (Metric)120 1:20 |
| Tool holder | 4/6/8 electrical tool holder |
| Spindle speed | 25-850rpm |
| Item | CK6163 | CK6180 | CK61100 | CK61125 |
|---|---|---|---|---|
| Max. swing over bed (mm) | φ 630 | Φ800 | Φ1100 | Φ1250 |
| Max. swing dia. over cross slide(mm) | φ 350 | Φ500 | Φ820 | Φ970 |
| Max. processing length(mm) | 1000/1500/2000/2500 | 1000/1500/2000/2500 | 1500/2000/3000 | 1500/2000/3000 |
| Form | Three gears No grade to change frequency | Four gears No grade to change frequency | Three gears No grade to change frequency | |
| Range of spindle speed(r/min) | 25-850 rpm | 25-850 rpm | 6-500 rpm | |
| Diameter of spindle bore (mm) | φ 105 | φ105 | φ130 | |
| Fast moving feed speed (mm/min) | X:4000 Z:5000 | X:4000 Z:5000 | X:4000 Z:5000 | |
| Resetting accuracy(mm) | X:0.012 Z:0.016 | X:0.012 Z:0.016 | X:0.012 Z:0.016 | |
| Processing accuracy(mm) | IT6-IT7 | IT6-IT7 | IT6-IT7 |
