Product Details
Place of Origin: SHANDONG
Brand Name: cnc lathe machine
Certification: CE
Model Number: CK6150
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD15700-USD22800
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Number Of Axes:
|
2
|
Tool Post Stations:
|
6, 4,8
|
Cnc Control:
|
GSK Or FANUC、Siemens, Syntec
|
Tailstock Shaft Diameter:
|
95mm
|
Positioning Accuracy:
|
0.01
|
Coolant System:
|
Yes
|
Cnc Or Not:
|
Cnc
|
Through Bar Diameter:
|
Ø82
|
Tailstock Taper:
|
MT-5
|
|
Number Of Axes:
|
2
|
|
Tool Post Stations:
|
6, 4,8
|
|
Cnc Control:
|
GSK Or FANUC、Siemens, Syntec
|
|
Tailstock Shaft Diameter:
|
95mm
|
|
Positioning Accuracy:
|
0.01
|
|
Coolant System:
|
Yes
|
|
Cnc Or Not:
|
Cnc
|
|
Through Bar Diameter:
|
Ø82
|
|
Tailstock Taper:
|
MT-5
|
| Attribute | Value |
|---|---|
| Number Of Axes | 2 |
| Tool Post Stations | 6, 4, 8 |
| CNC Control | GSK, FANUC, Siemens, Syntec |
| Tailstock Shaft Diameter | 95mm |
| Positioning Accuracy | 0.01 |
| Coolant System | Yes |
| Through Bar Diameter | Ø82 |
| Tailstock Taper | MT-5 |

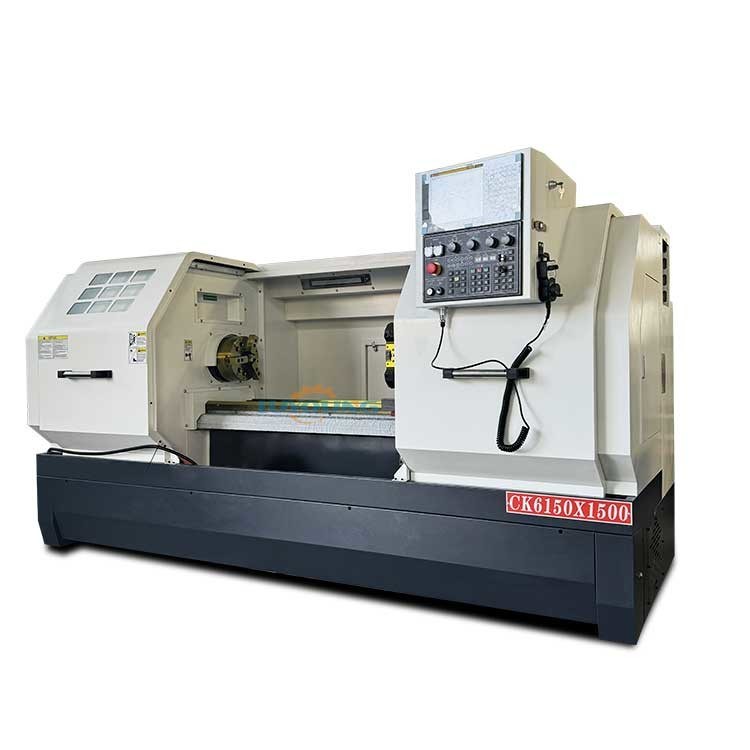

The CK6150x1500 Flat Bed CNC Lathe Machine is designed for precision machining with a distance between centers of 1500mm. Equipped with a coolant system and multiple CNC control options, this machine delivers consistent performance for demanding industrial applications.
| Item | CK6150A |
|---|---|
| Max. swing dia. over bed | 500mm |
| Max. swing dia. over cross slide | 280mm |
| Processing length | 750mm/1000mm/1500mm/2000mm |
| Width of the bed | 400mm |
| Dia. of spindle | 82mm |
| Spindle speed | 30-150,100-500/320-1600rpm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| Dimension | 2410/2660/3160*1560*1730mm |
| Weight | 2800/3200/3500kg |
This versatile CNC lathe machine is ideal for:
