Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE
Model Number: CK6140
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD7200-USD20000
Packaging Details: Fumigation-free plywood
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
The Maximum Rotary Diameter Of The Bed:
|
Φ400mm
|
The Maximum Rotary Diameter On The Tray:
|
Φ180mm
|
Maximum Machining Length:
|
850/1500mm
|
Maximum Stroke X/z:
|
X:220z:1050/1600mm
|
The Main Shaft End Form:
|
C6
|
Spindle Motor Power:
|
5.5KW
|
Chuck Size:
|
200mm
|
Positioning Accuracy:
|
0.02/0.025mm
|
Repeat Positioning Accuracy X/z:
|
0.01/0.015mm
|
Tool Profile Size:
|
20x20
|
External Dimension:
|
2500×1500×1650mm
|
Machine Weight:
|
1800/2300kg
|
|
The Maximum Rotary Diameter Of The Bed:
|
Φ400mm
|
|
The Maximum Rotary Diameter On The Tray:
|
Φ180mm
|
|
Maximum Machining Length:
|
850/1500mm
|
|
Maximum Stroke X/z:
|
X:220z:1050/1600mm
|
|
The Main Shaft End Form:
|
C6
|
|
Spindle Motor Power:
|
5.5KW
|
|
Chuck Size:
|
200mm
|
|
Positioning Accuracy:
|
0.02/0.025mm
|
|
Repeat Positioning Accuracy X/z:
|
0.01/0.015mm
|
|
Tool Profile Size:
|
20x20
|
|
External Dimension:
|
2500×1500×1650mm
|
|
Machine Weight:
|
1800/2300kg
|
| Specification | Value |
|---|---|
| Maximum rotary diameter of the bed | Φ400mm |
| Maximum rotary diameter on the tray | Φ180mm |
| Maximum machining length | 850/1500mm |
| Maximum stroke X/Z | X:220mm, Z:1050/1600mm |
| Main shaft end form | C6 |
| Diameter of main shaft hole | 52mm |
| Taper of main shaft hole | MT6 |
| Spindle motor power | 5.5KW |
| Chuck size | 200mm |
| Positioning accuracy | 0.02/0.025mm |
| Repeat positioning accuracy X/Z | 0.01/0.015mm |
| Diameter of tail sleeve | 65mm |
| Tail sleeve stroke | 140mm |
| Tail socket taper | MT4 |
| Tool post form | Electric four-position |
| Tool profile size | 20×20mm |
| Total power capacity | 10KVA |
| External dimension | 2500×1500×1650mm |
| Machine weight | 1800/2300kg |

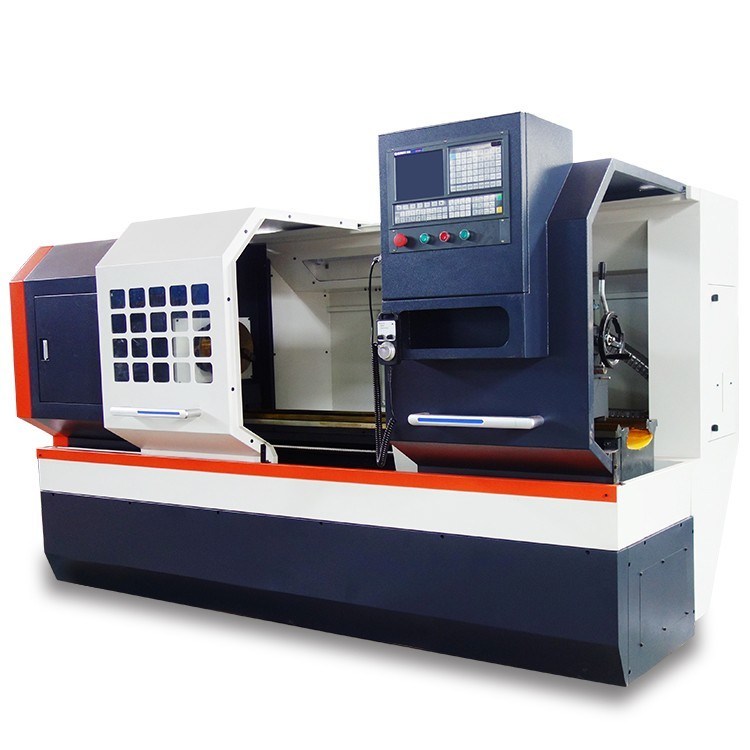

This high-power, rigid CNC lathe machine is ideal for processing large and medium-sized parts made of steel, cast iron, and non-ferrous metals. It excels in powerful cutting operations including:
