Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

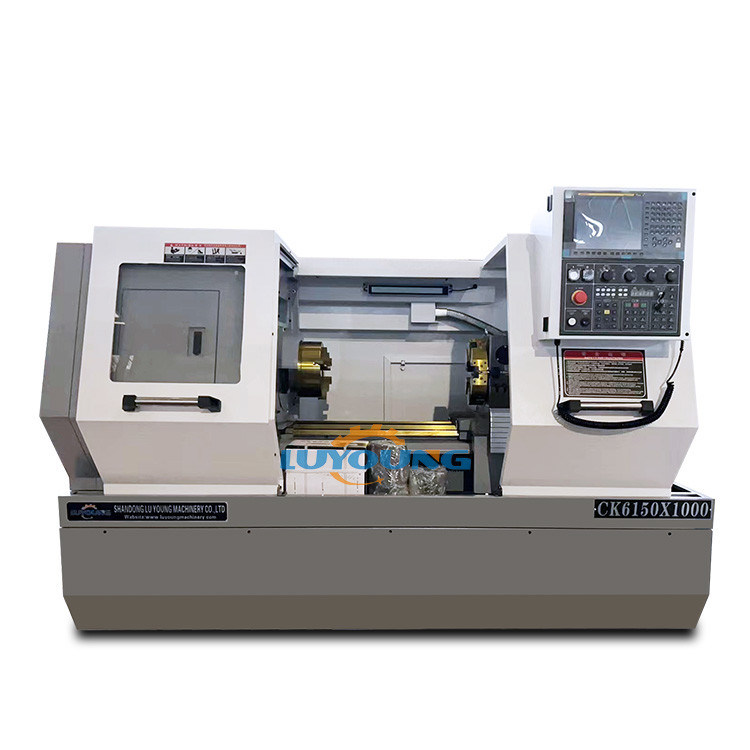

Model Number: ck6150
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 7500-20000
Packaging Details: Fumigation-free plywood box
Delivery Time: 30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets
|
Max. Swing Dia. Over Bed:
|
500mm
|
Max. Swing Dia. Over Cross Slide:
|
280mm
|
Width Of The Bed:
|
400mm
|
Spindle Bore:
|
82mm
|
Speed:
|
15-1500rpm
|
Chuck:
|
6/8/10
|
Tool Holder:
|
4
|
Main Motor Power:
|
7.5KW
|
X/Z Axis Position Accuracy:
|
0.02/0.025mm
|
X/Z Axis Repeatability:
|
0.01/0.012mm
|
Tailstock Sleeve Travel:
|
150mm
|
|
Max. Swing Dia. Over Bed:
|
500mm
|
|
Max. Swing Dia. Over Cross Slide:
|
280mm
|
|
Width Of The Bed:
|
400mm
|
|
Spindle Bore:
|
82mm
|
|
Speed:
|
15-1500rpm
|
|
Chuck:
|
6/8/10
|
|
Tool Holder:
|
4
|
|
Main Motor Power:
|
7.5KW
|
|
X/Z Axis Position Accuracy:
|
0.02/0.025mm
|
|
X/Z Axis Repeatability:
|
0.01/0.012mm
|
|
Tailstock Sleeve Travel:
|
150mm
|
| Attribute | Value |
|---|---|
| Max. swing diameter over bed | 500mm |
| Max. swing diameter over cross slide | 280mm |
| Width of the bed | 400mm |
| Spindle bore | 82mm |
| Speed range | 15-1500rpm |
| Chuck options | 6/8/10 |
| Tool holder capacity | 4 station |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| Tailstock sleeve travel | 150mm |
| Specification | CK6150A Model |
|---|---|
| Processing length options | 750mm/1000mm/1500mm |
| Spindle taper | 1:20/90 |
| Spindle nose type | D-8 |
| Spindle speed step | Step-less |
| Chuck size | 250mm |
| Tool bar section | 25×25mm |
| X/Z axis travel | 360/750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock taper | MT5 |
| Dimensions | 2410/2660/3160×1560×1730mm |
| Weight | 2800/3200/3500kg |
