Product Details
Place of Origin: Shandong, China
Brand Name: luyoung
Model Number: tck630
Payment & Shipping Terms
Price: $35,000.00/sets >=1 sets
|
Type:
|
Horizontal
|
Max. Length Of Workpiece (mm):
|
500
|
Structure:
|
Slant Bed Lathe
|
Machining Capacity:
|
Medium Duty
|
Width Of Bed (mm):
|
600 Mm
|
Spindle Motor Power(kW):
|
11
|
No. Of Spindles:
|
Single
|
Number Of Axes:
|
2
|
Travel (X Axis)(mm):
|
340 Mm
|
Travel (Z Axis)(mm):
|
1000 Mm
|
Positioning Accuracy (mm):
|
±0.006
|
Repeatability (X/Y/Z) (mm):
|
±0.015
|
Dimension(L*W*H):
|
3650x1870x2100mm
|
Voltage:
|
380v 3 Phase
|
CNC Control System:
|
GSK
|
Tool Post Stations:
|
12
|
Weight (KG):
|
5700
|
Warranty:
|
1 Year
|
Key Selling Points:
|
High Safety Level
|
Machinery Test Report:
|
Provided
|
Video Outgoing-inspection:
|
Provided
|
Warranty Of Core Components:
|
1 Year
|
CNC Or Not:
|
CNC
|
Automatic Grade:
|
Automatic
|
Max.swing Over Bed:
|
630mm
|
Spindle Speed:
|
50-4500r/min
|
Cross Slide Length:
|
1000mm
|
Lathe Bed Straucture:
|
3 Jaw Manual Chuck
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
Spindle Nose:
|
A2-8
|
Spindle Speed Ranges:
|
3000~4000rpm
|
Spindle Bore:
|
87mm
|
Condition:
|
New
|
Toolpost Brand:
|
Hongda
|
Applicable Industries:
|
Machinery Repair Shops, Manufacturing Plant, Retail
|
Showroom Location:
|
None
|
Core Components:
|
Bearing, Gear
|
Max. Turned Length (mm):
|
500
|
Spindle Bore(mm):
|
88
|
Max. Spindle Speed (r.p.m):
|
3000
|
Year:
|
2024
|
Marketing Type:
|
New Product 2024
|
|
Type:
|
Horizontal
|
|
Max. Length Of Workpiece (mm):
|
500
|
|
Structure:
|
Slant Bed Lathe
|
|
Machining Capacity:
|
Medium Duty
|
|
Width Of Bed (mm):
|
600 Mm
|
|
Spindle Motor Power(kW):
|
11
|
|
No. Of Spindles:
|
Single
|
|
Number Of Axes:
|
2
|
|
Travel (X Axis)(mm):
|
340 Mm
|
|
Travel (Z Axis)(mm):
|
1000 Mm
|
|
Positioning Accuracy (mm):
|
±0.006
|
|
Repeatability (X/Y/Z) (mm):
|
±0.015
|
|
Dimension(L*W*H):
|
3650x1870x2100mm
|
|
Voltage:
|
380v 3 Phase
|
|
CNC Control System:
|
GSK
|
|
Tool Post Stations:
|
12
|
|
Weight (KG):
|
5700
|
|
Warranty:
|
1 Year
|
|
Key Selling Points:
|
High Safety Level
|
|
Machinery Test Report:
|
Provided
|
|
Video Outgoing-inspection:
|
Provided
|
|
Warranty Of Core Components:
|
1 Year
|
|
CNC Or Not:
|
CNC
|
|
Automatic Grade:
|
Automatic
|
|
Max.swing Over Bed:
|
630mm
|
|
Spindle Speed:
|
50-4500r/min
|
|
Cross Slide Length:
|
1000mm
|
|
Lathe Bed Straucture:
|
3 Jaw Manual Chuck
|
|
Control System:
|
SIEMENS GSK FANUC (optional)
|
|
Spindle Nose:
|
A2-8
|
|
Spindle Speed Ranges:
|
3000~4000rpm
|
|
Spindle Bore:
|
87mm
|
|
Condition:
|
New
|
|
Toolpost Brand:
|
Hongda
|
|
Applicable Industries:
|
Machinery Repair Shops, Manufacturing Plant, Retail
|
|
Showroom Location:
|
None
|
|
Core Components:
|
Bearing, Gear
|
|
Max. Turned Length (mm):
|
500
|
|
Spindle Bore(mm):
|
88
|
|
Max. Spindle Speed (r.p.m):
|
3000
|
|
Year:
|
2024
|
|
Marketing Type:
|
New Product 2024
|

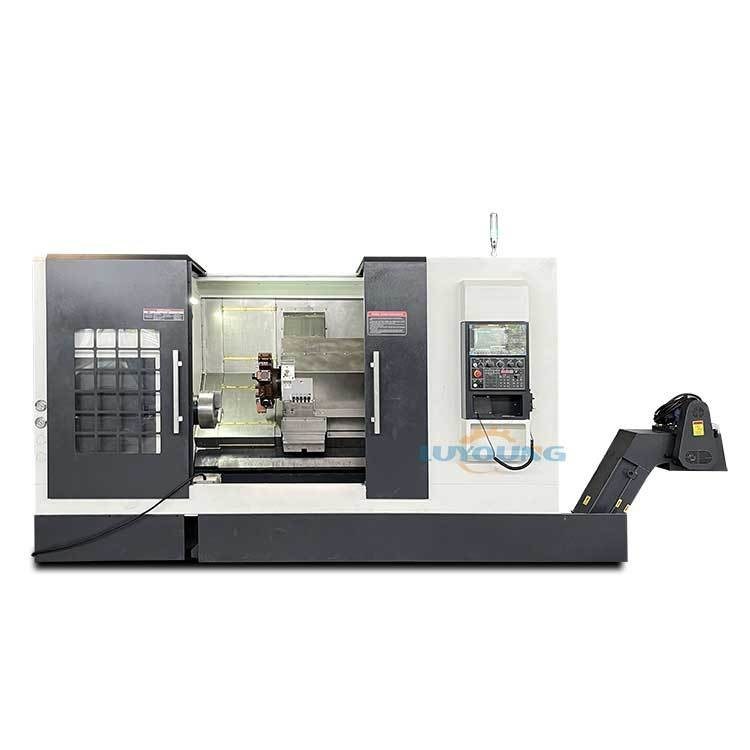

The TCK630 is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. Its compact structure enables efficient machining of small parts, including turning of outer circles, end surfaces, threads, and various surface milling and drilling operations in radial and axial directions.
| Attribute | Value |
|---|---|
| Type | Horizontal |
| Max. Length of Workpiece | 500 mm |
| Structure | Slant Bed Lathe |
| Machining Capacity | Medium Duty |
| Spindle Motor Power | 11 kW |
| Number of Axes | 2 |
| Positioning Accuracy | ±0.006 mm |
| Repeatability (X/Y/Z) | ±0.015 mm |
| Max. Spindle Speed | 3000 rpm |
| CNC Control System | GSK (SIEMENS/FANUC optional) |
| Weight | 5700 KG |
| Warranty | 1 Year |
| Specification | Unit | Value |
|---|---|---|
| Max.swing over bed | mm | 630 |
| Cross slide length | mm | 1000 |
| Lathe bed structure | 45° integral inclined lathe | |
| Spindle bore | mm | 87 |
| Spindle (C Axis) motor | kW | 11 |
| X axis travel | mm | 340 |
| Z axis travel | mm | 1000 |
| Machine dimensions (L×W×H) | mm | 3650×1870×2100 |
Our machines are protected with:
How to get a quotation?
Provide the model, quantity, and your requirements for our best price.
How to select the right model?
Send your workpiece drawing and our technicians will recommend the ideal model.
What is the minimum order quantity?
1 set.
What is the warranty period?
12 months, including free replacement of damaged accessories.
