Product Details
Place of Origin: CHINA
Brand Name: Luyoung
Certification: CE

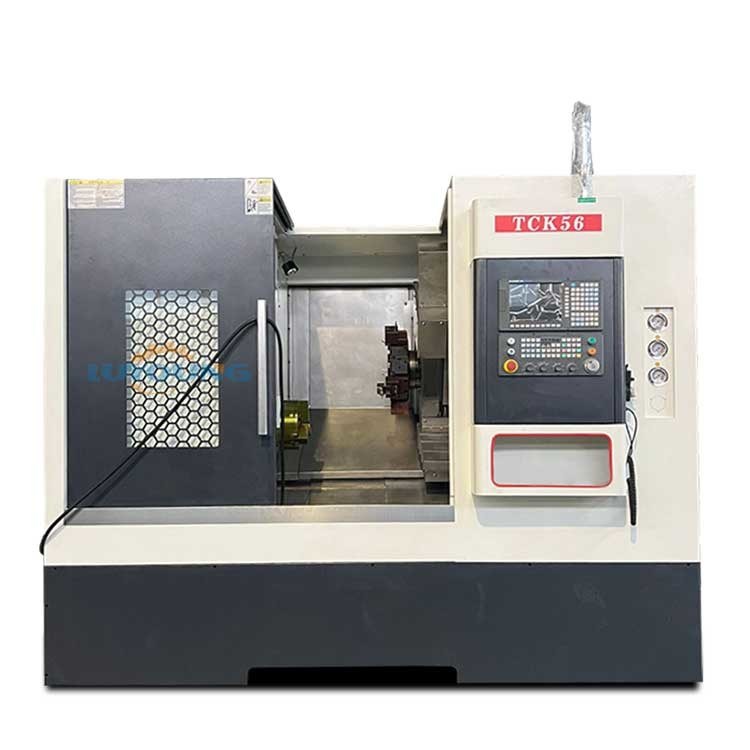

Model Number: TCK56
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $24000/SET
Packaging Details: Fumigation-free packaging
Delivery Time: 30DAYS
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 10/SET
|
Tool Turret:
|
8 Station
|
Coolant System:
|
Included
|
Rapid Traverse Rate:
|
12m/min
|
Chuck Size:
|
8 Inch
|
Max Turning Length:
|
500mm
|
Spindle Speed:
|
3000rpm
|
Model:
|
TCK56
|
Power Supply:
|
380V/50Hz
|
X/Z Axis Travel:
|
250mm/500mm
|
Max Swing Diameter:
|
500mm
|
Max Turning Diameter:
|
300mm
|
Spindle Motor Power:
|
7.5kW
|
Control System:
|
CNC
|
Type:
|
Slant Bed
|
|
Tool Turret:
|
8 Station
|
|
Coolant System:
|
Included
|
|
Rapid Traverse Rate:
|
12m/min
|
|
Chuck Size:
|
8 Inch
|
|
Max Turning Length:
|
500mm
|
|
Spindle Speed:
|
3000rpm
|
|
Model:
|
TCK56
|
|
Power Supply:
|
380V/50Hz
|
|
X/Z Axis Travel:
|
250mm/500mm
|
|
Max Swing Diameter:
|
500mm
|
|
Max Turning Diameter:
|
300mm
|
|
Spindle Motor Power:
|
7.5kW
|
|
Control System:
|
CNC
|
|
Type:
|
Slant Bed
|
| Tool Turret | 8 Station |
| Coolant System | Included |
| Rapid Traverse Rate | 12m/min |
| Chuck Size | 8 inch |
| Max Turning Length | 500mm |
| Spindle Speed | 3000rpm |
| Model | TCK56 |
| Power Supply | 380V/50Hz |
| X/Z Axis Travel | 250mm/500mm |
| Max Swing Diameter | 500mm |
| Max Turning Diameter | 300mm |
| Spindle Motor Power | 7.5kW |
| Control System | CNC |
| Type | Slant Bed |
| Position | Project | FCK56 |
|---|---|---|
| Processing scope | Maximum rotation diameter on the bed (mm) | Φ650 |
| Maximum cutting diameter (mm) | Φ540 | |
| Maximum cutting length (mm) | 580 (Power turret 540) | |
| Journey and feed | X-axis travel (mm) | 280 |
| Z-axis travel (mm) | 700 | |
| X-axis movement speed (mm/min) | 24000 | |
| Z-axis movement speed (mm/min) | 24000 | |
| Handwheel (mm) | 0.001/0.01/0.1 | |
| X. Z feed rate (mm/min) | 0~5000 |
| Number | Name | Manufacturer | Optional Configuration |
|---|---|---|---|
| 1 | Guangshu 980TB3i | Guangzhou Guangshu | FANUC |
| 2 | Servo main motor and X/Z-axis servo motor | Guangzhou Guangshu | FANUC |
| 3 | Hydraulic chuck and oil cylinder | Zhejiang Dingchang | Jiangsu Province |
| 4 | Spindle unit | HRB bearings | NSK |
