Product Details
Place of Origin: China
Brand Name: Luyoung
Certification: CE

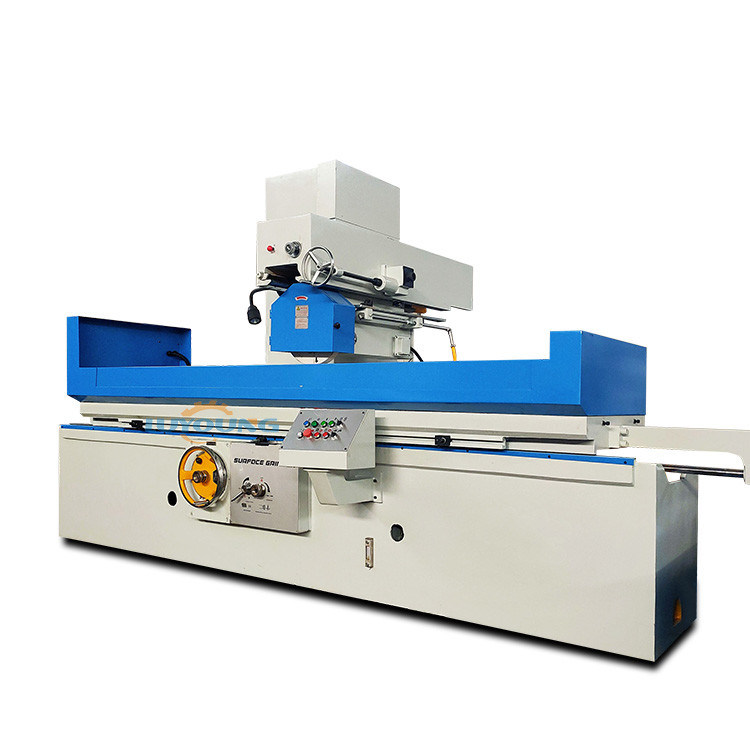

Model Number: M7150x2000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD32400-USD45000
Packaging Details: non-fumigation wooden box
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 100sets
|
Workbench Size (width X Length):
|
500x2000mm
|
Maximum Grinding Size (width X Length X Height):
|
500x2000mm
|
Workbench Speed (stepless Speed Regulation):
|
3-25m/min
|
Longitudinal Movement Of Worktable (hydraulic):
|
200-2100mm
|
Workbench Load Capacity (including Electronic Suction Cup):
|
1600kg
|
|
Workbench Size (width X Length):
|
500x2000mm
|
|
Maximum Grinding Size (width X Length X Height):
|
500x2000mm
|
|
Workbench Speed (stepless Speed Regulation):
|
3-25m/min
|
|
Longitudinal Movement Of Worktable (hydraulic):
|
200-2100mm
|
|
Workbench Load Capacity (including Electronic Suction Cup):
|
1600kg
|
| Attribute | Value |
|---|---|
| Workbench size (width × length) | 500 × 2000mm |
| Maximum grinding size (width × length × height) | 500 × 2000mm |
| Workbench speed (stepless speed regulation) | 3-25m/min |
| Longitudinal movement of worktable (hydraulic) | 200-2100mm |
| Workbench load capacity (including electronic suction cup) | 1600kg |
| Parameter | Unit | Value |
|---|---|---|
| Workbench size (width × length) | mm | 500×2000 |
| Number of T-slots on workbench | 3 | |
| Electronic suction cup size (width × length) | mm | 500×1000 (2 pieces) |
| Grinding wheel size (outer diameter × width × inner diameter) | mm | Φ 350 × 40 × Φ 127 |
| Machine tool dimensions (approx.) (length × width × height) | mm | 5000 ×1875×2400 |
| Net weight (approx.) | Kg | 6300 |
